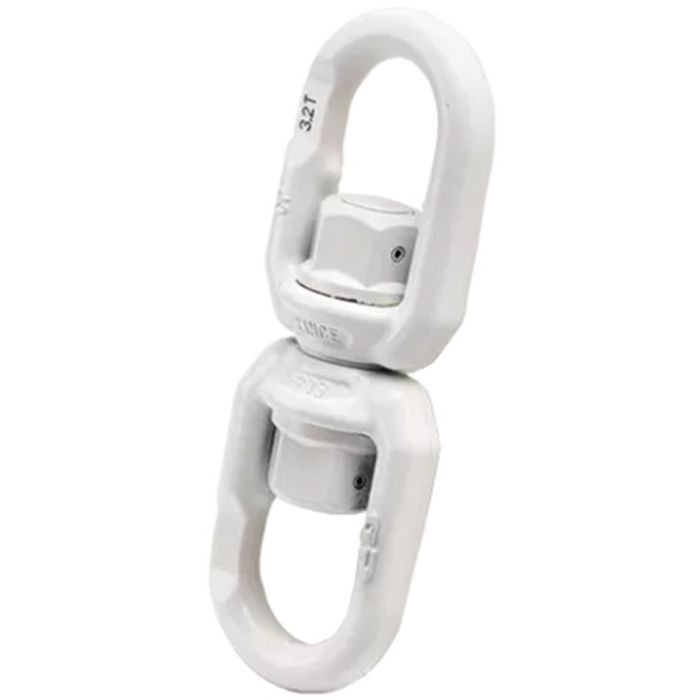

The Green Pin® Needle Bearing Swivel EE is a grade 8 needle bearing eye-eye swivel. Needle bearing swivels are used to prevent any transfer of the normal twisting motion from the load to the chain. These swivels are fitted with a needle roller thrust bearing on both eyes. This enables smooth, easy rotation under load.
- Size: 25/32″ (20mm)
- Working Load Limit (WLL): 5.4 tons (11,880 lbs)
- Eye Inside Length: 2-3/8″
- Eye Inside Width: 2-9/32″
- Overall Length: 10.55″
- Material: Grade 80 Alloy Steel (quenched and tempered)
- Finish: Painted White
- Design Factor 4:1
- Imported
