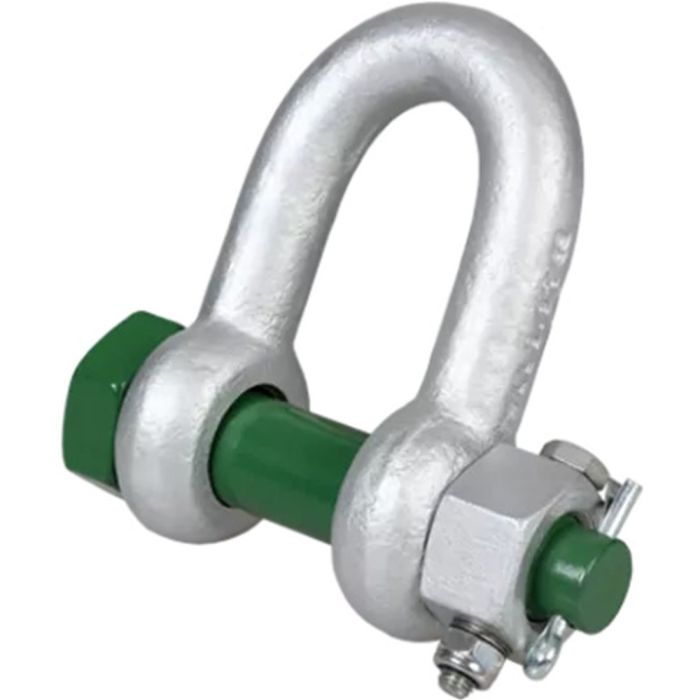

Green Pin G-4133 Fixed Nut Dee Shackle 1″ – Hot Dip Galvanized

The Green Pin® Dee Shackle FN stands out as a dee shackle equipped with a safety bolt and a fixed nut, offering triple safety with a split pin. It excels in dynamic load situations or under extreme vibrations, because of its triple safety (split pin, safety bolt and fixed nut). The fixed nut is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. Additionally, the Green Pin® Dee Shackle FN conforms to a wide range of certifications from class societies such as DNV GL.

✻ FOR 1-LEG SYSTEMS ONLY ✻

Specifications:

• Size (Shackle Body Thickness): 1″
• Throat Opening (Width Between Ears): 1.69″
• Throat Depth: 3.35″
• Pin Size: 1.10″
• Pin Type: Split Pin, Safety Bolt, Fixed Nut
• Finish: Hot Dipped Galvanized
• Material: Grade 6 High Tensile Steel
• Working Load Limit: 8.50 tons (18,700 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: EN 13889, ASME B30.26, & US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A
• Design Factor 6:1
