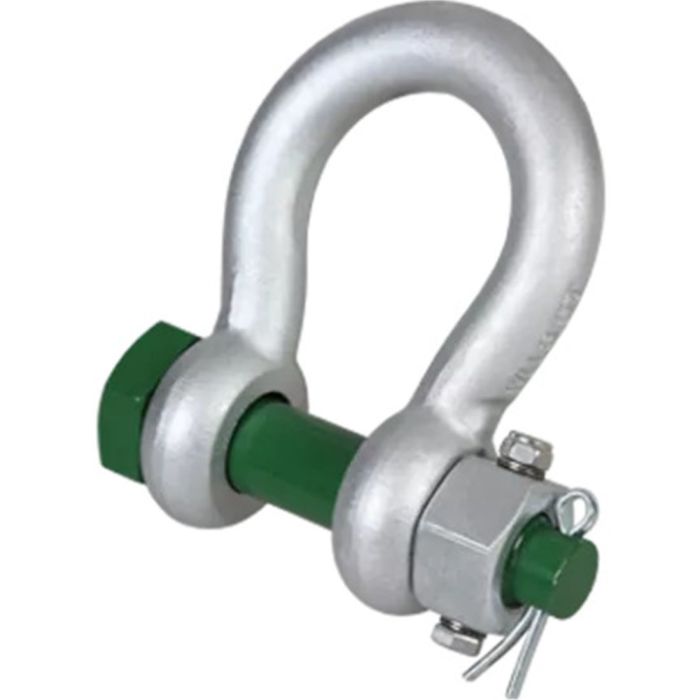

Green Pin G-4143 Fixed Nut Bow Shackle 7/8″ – Hot Dip Galvanized

The Green Pin® Bow Shackle FN is a bow shackle with a safety bolt and a fixed nut, providing triple safety with the inclusion of a split pin. The fixed nut is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. When the load is dynamic or can be exposed to extreme vibrations the Green Pin® Bow Shackle FN is thus a top choice. The shackle is suitable for both one-leg and multi-leg systems.

Specifications:

• Size (Shackle Body Thickness): 7/8″
• Throat Opening (Width Between Ears): 1.42″
• Throat Depth: 3.27″
• Pin Size: 0.98″
• Pin Type: Bolt, Fixed Nut, & Cotter
• Finish: Hot Dipped Galvanized
• Material: Grade 6 High Tensile Steel
• Working Load Limit: 6.50 tons (14,300 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: EN 13889, ASME B30.26 & US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A
• Design Factor 6:1
