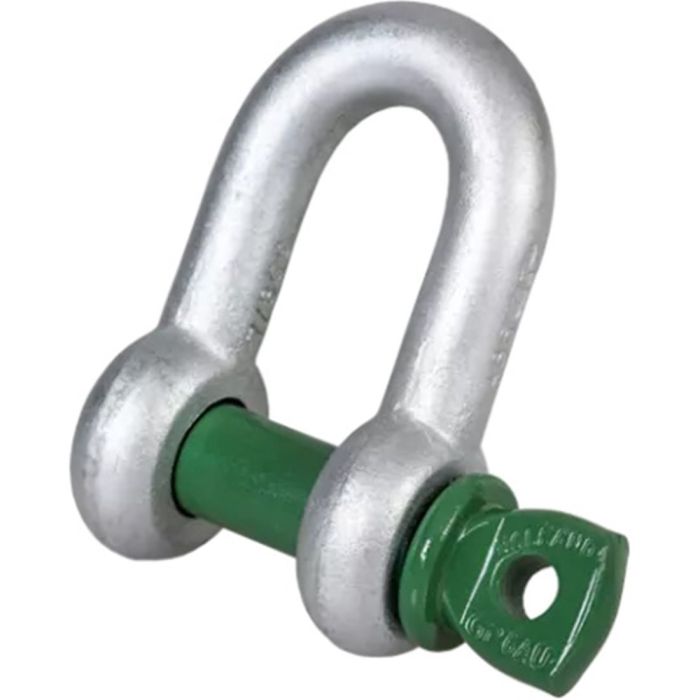

Green Pin G-4151 Screw Pin Dee Shackle 1/4″ – Hot Dip Galvanized

The Green Pin® Dee Shackle SC features a screw collar pin for rapid assembly and disassembly, making it ideal for frequent rigging activities. Its galvanized construction ensures long-term durability, while its design minimizes wear on (wire) ropes by concealing the screw thread. Additionally, it meets a variety of certifications from class societies like DNV GL.

✻ FOR 1-LEG SYSTEMS ONLY ✻

Specifications:

• Size (Shackle Body Thickness): 1/4″
• Throat Opening (Width Between Ears): 0.47″
• Throat Depth: 0.89″
• Pin Size: 0.31″
• Pin Type: Screw Pin
• Finish: Hot Dipped Galvanized
• Material: Grade 6 High Tensile Steel
• Working Load Limit: 0.50 tons (1100 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: EN 13889, & US Fed. Spec. RR-C-271, Type IVB, Class 2, Grade A
• Design Factor 6:1
