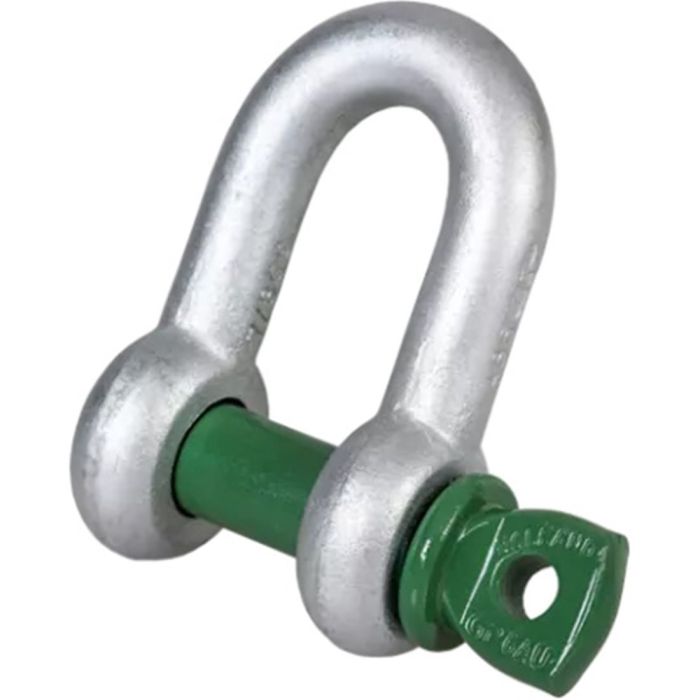

The Green Pin® Dee Shackle SC features a screw collar pin for rapid assembly and disassembly, making it ideal for frequent rigging activities. Its galvanized construction ensures long-term durability, while its design minimizes wear on (wire) ropes by concealing the screw thread. Additionally, it meets a variety of certifications from class societies like DNV GL.
✻ FOR 1-LEG SYSTEMS ONLY ✻
Specifications:
- Size (Shackle Body Thickness): 3/16″
- Throat Opening (Width Between Ears): 0.37″
- Throat Depth: 0.75″
- Pin Size: 0.24″
- Pin Type: Screw Pin
- Finish: Hot Dipped Galvanized
- Material: Grade 6 High Tensile Steel
- Working Load Limit: 0.33 tons (726 lbs)
- Temp. Range: -40°C up to +200°C
- Standards & Certifications: EN 13889, & US Fed. Spec. RR-C-271, Type IVB, Class 2, Grade A
- Design Factor 6:1
