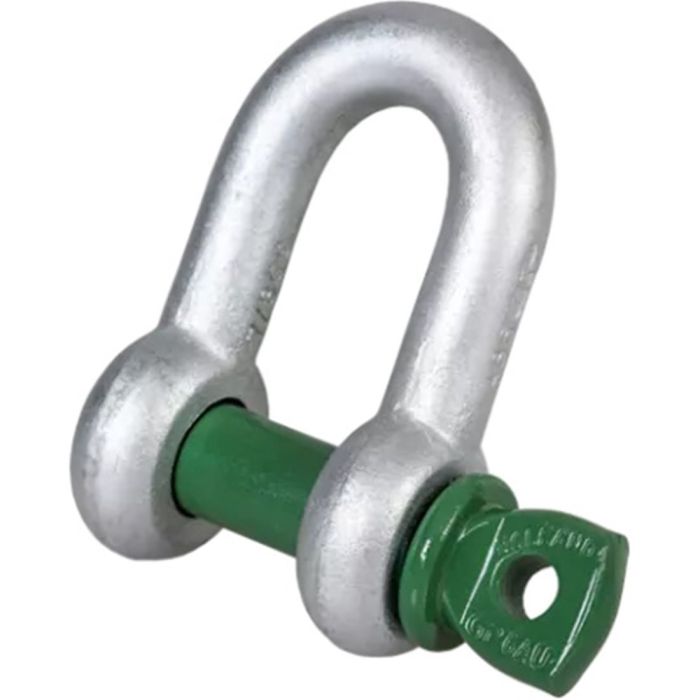

Green Pin G-4151 Screw Pin Dee Shackle 3/4″ – Hot Dip Galvanized

The Green Pin® Dee Shackle SC features a screw collar pin for rapid assembly and disassembly, making it ideal for frequent rigging activities. Its galvanized construction ensures long-term durability, while its design minimizes wear on (wire) ropes by concealing the screw thread. Additionally, it meets a variety of certifications from class societies like DNV GL.

✻ FOR 1-LEG SYSTEMS ONLY ✻

Specifications:

• Size (Shackle Body Thickness): 3/4″
• Throat Opening (Width Between Ears): 1.22″
• Throat Depth: 2.32″
• Pin Size: 0.87″
• Pin Type: Screw Pin
• Finish: Hot Dipped Galvanized
• Material: Grade 6 High Tensile Steel
• Working Load Limit: 4.75 tons (10,450 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: ASME B30.26, EN 13889, & US Fed. Spec. RR-C-271, Type IVB, Class 2, Grade A
• Design Factor 6:1
