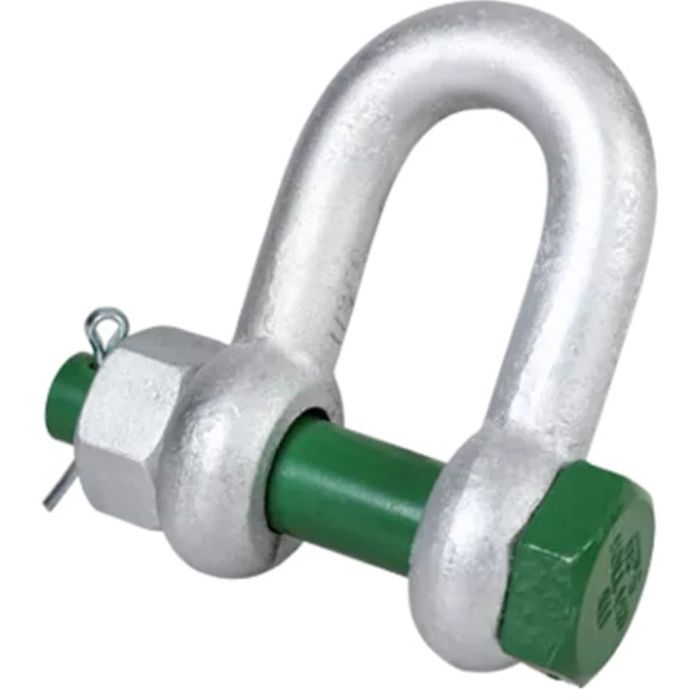

Green Pin G-4153 Bolt Type Dee Shackle 1/2″ – Hot Dip Galvanized

The Green Pin® Dee Shackle BN is a dee shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Particularly important for use offshore, the shackle conforms to a wide range of certifications from class societies such as DNV GL.

✻ FOR 1-LEG SYSTEMS ONLY ✻

Specifications:

• Size (Shackle Body Thickness): 1/2″
• Throat Opening (Width Between Ears): 0.87″
• Throat Depth: 1.69″
• Pin Size: 0.63″
• Pin Type: Bolt, Nut, & Cotter
• Finish: Hot Dipped Galvanized
• Material: Grade 6 High Tensile Steel
• Working Load Limit: 2.00 tons (4400 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: EN 13889, ASME B30.26, & US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A
• Design Factor 6:1
