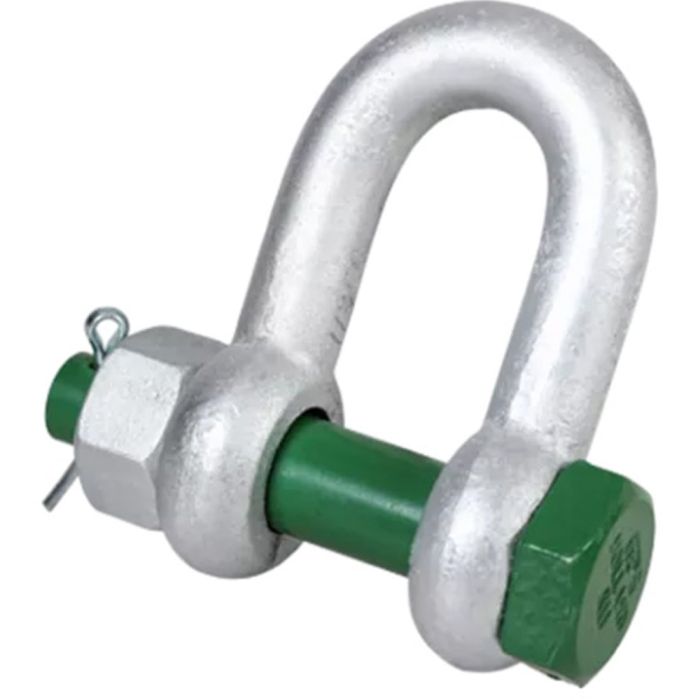

The Green Pin® Dee Shackle BN is a dee shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Particularly important for use offshore, the shackle conforms to a wide range of certifications from class societies such as DNV GL.
✻ FOR 1-LEG SYSTEMS ONLY ✻
Specifications:
- Size (Shackle Body Thickness): 1-3/4″
- Throat Opening (Width Between Ears): 2.91″
- Throat Depth: 5.87″
- Pin Size: 1.97″
- Pin Type: Bolt, Nut, & Cotter
- Finish: Hot Dipped Galvanized
- Material: Grade 6 High Tensile Steel
- Working Load Limit: 25.00 tons (55,000 lbs)
- Temp. Range: -40°C up to +200°C
- Standards & Certifications: EN 13889, ASME B30.26, & US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A
- Design Factor 6:1
