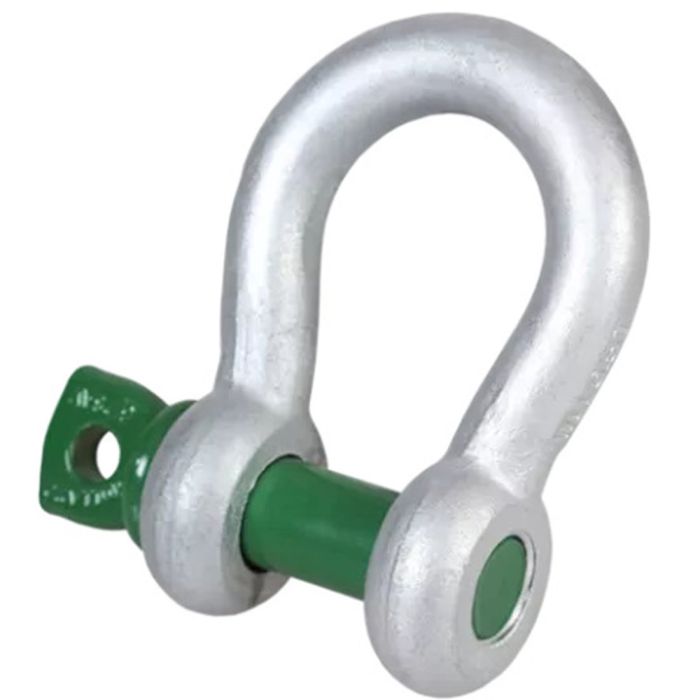

Green Pin G-4161 Screw Pin Bow Shackle 2-1/2″ – Hot Dip Galvanized

The Green Pin® Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin® Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle’s design reduces the wear of (wire) rope as the screw thread is hidden in a chamber.

Specifications:

• Size (Shackle Body Thickness): 2-1/2″
• Throat Opening (Width Between Ears): 4.13″
• Throat Depth: 10.24″
• Pin Size: 2.76″
• Pin Type: Screw Pin
• Finish: Hot Dipped Galvanized
• Material: Grade 6 High Tensile Steel
• Working Load Limit: 55.00 tons (121,000 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: ASME B30.26, EN 13889, & US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A
• Design Factor 6:1
