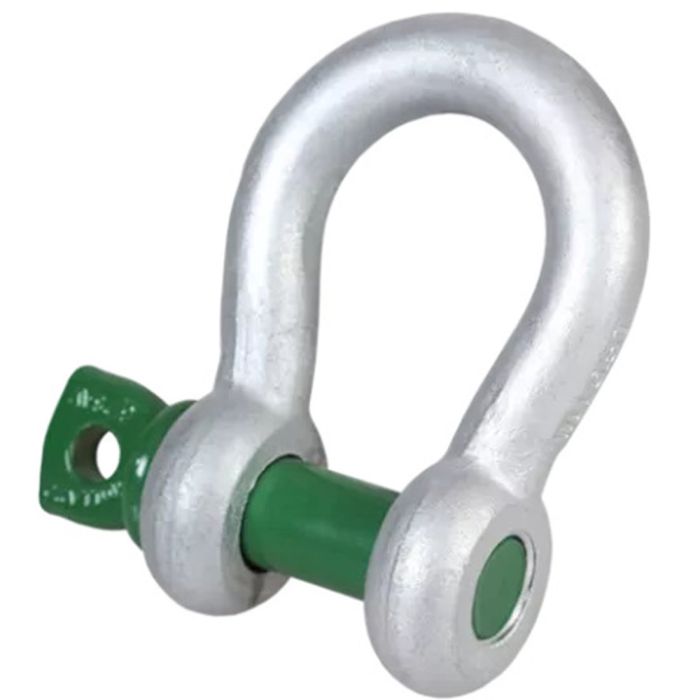

The Green Pin® Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin® Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle’s design reduces the wear of (wire) rope as the screw thread is hidden in a chamber.
Specifications:
- Size (Shackle Body Thickness): 5/16″
- Throat Opening (Width Between Ears): 0.53″
- Throat Depth: 1.26″
- Pin Size: 0.39″
- Pin Type: Screw Pin
- Finish: Hot Dipped Galvanized
- Material: Grade 6 High Tensile Steel
- Working Load Limit: 0.75 tons (1650 lbs)
- Temp. Range: -40°C up to +200°C
- Standards & Certifications: EN 13889, & US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A
- Design Factor 6:1
