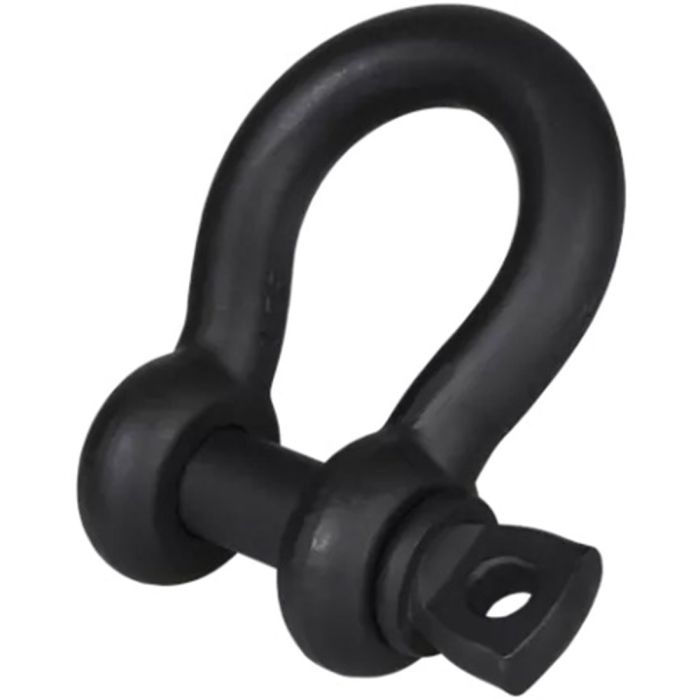

The Green Pin® Theatre Shackle SC is a matte black bow shackle with a screw collar pin. Specifically designed for theatres and entertainment venues, its black matte finish eliminates sheen and light reflections, ensuring it doesn’t distract from stage performances. The screw pin allows for quick assembly and disassembly, ideal for frequent rigging activities. Additionally, the shackle’s eye chamber hides the screw thread, reducing rope wear.
Specifications:
- Size (Shackle Body Thickness): 7/8″
- Throat Opening (Width Between Ears): 1.42″
- Throat Depth: 3.27″
- Pin Size: 0.98″
- Pin Type: Screw Pin
- Finish: Matte Black
- Material: High tensile steel, Grade 6, quenched and tempered
- Working Load Limit: 6.50 tons (14,300 lbs)
- Standards & Certifications: EN 13889, ASME B30.26 & US Fed. Spec. RR-C-271, Type IVA, Class 2, Grade A
- Design Factor 6:1
