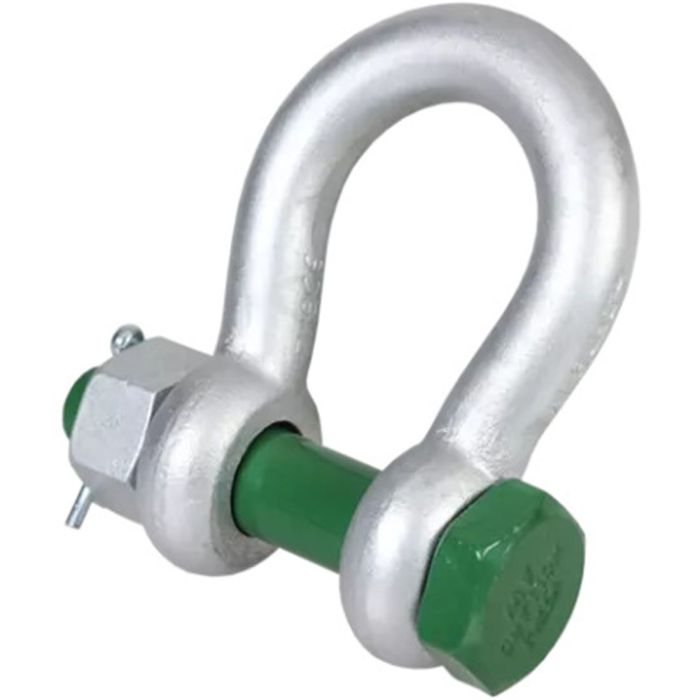

The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin® Bow Shackle BN. Suitable for both one-leg and multi-leg systems.
Specifications:
- Size (Shackle Body Thickness): 1-1/2″
- Throat Opening (Width Between Ears): 2.36″
- Throat Depth: 5.75″
- Pin Size: 1.65″
- Pin Type: Bolt, Nut, & Cotter
- Finish: Hot Dipped Galvanized
- Material: Grade 6 High Tensile Steel
- Working Load Limit: 17.00 tons (37,400 lbs)
- Temp. Range: -40°C up to +200°C
- Standards & Certifications: ASME B30.26, EN 13889, & US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A
- Design Factor 6:1
