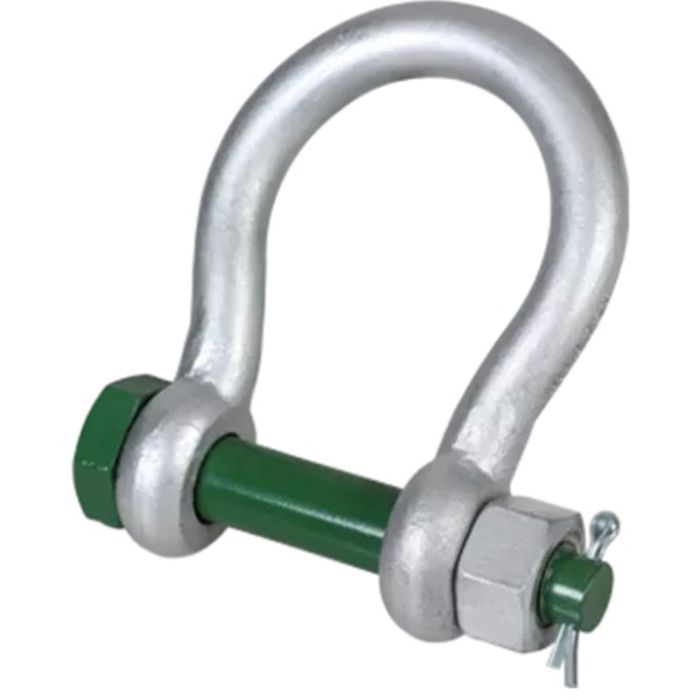

Green Pin G-4243 Alloy Bolt Type BigMouth Bow Shackle 2″ – Hot Dip Galvanized

The Green Pin BigMouth® Bow Shackle BN is a grade 8 shackle with a safety bolt and a wider shackle mouth. The wider shackle mouth enables you to connect the shackle to a connecting point (e.g. a pad eye) which is wider than usual. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Galvanization ensures long-term durability, and the shackle conforms to various certifications. Suitable for both one-leg and multi-leg systems, it’s particularly ideal for towing operations.

Specifications:

• Size (Shackle Body Thickness): 2″
• Throat Opening (Width Between Ears): 5.75″
• Throat Depth: 10.75″
• Pin Size: 2.24″
• Pin Type: Bolt, Nut, & Cotter
• Finish: Hot Dipped Galvanized
• Material: Alloy steel, Grade 8, quenched and tempered
• Working Load Limit: 30.00 tons (66,000 lbs)
• Temp. Range: -20°C up to +200°C
• Design Factor 6:1
