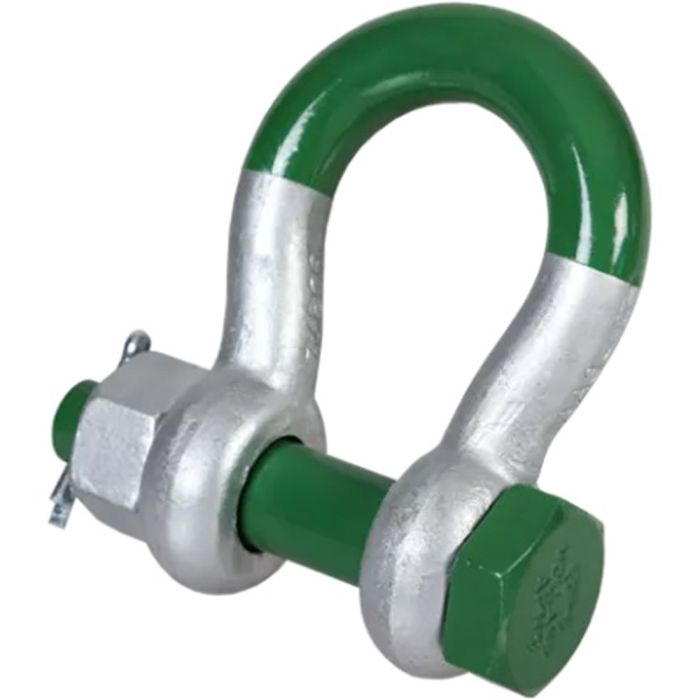

The Green Pin Super® Bow Shackle FN is a grade 8 bow shackle featuring a safety bolt and fixed nut. It offers easier handling due to its smaller size and weight while maintaining equal Working Load Limit (WLL) compared to non-Super products. Ideal for dynamic loads or extreme vibrations, it has a triple safety mechanism (split pin, safety bolt, and fixed nut). The fixed nut is securely attached to the pin head with bolts and Nord-Lock® washers. Galvanization ensures long-term durability, and the shackle minimizes wear and tear on counter components like wire ropes by hiding the screw thread within its eye chamber.
Specifications:
- Size (Shackle Body Thickness): 3-3/4″
- Throat Opening (Width Between Ears): 5.79″
- Throat Depth: 15.75″
- Pin Size: 3.74″
- Pin Type: Safety Bolt, Fixed Nut, Split Pin
- Finish: Painted
- Material: Alloy steel, Grade 8, quenched and tempered
- Working Load Limit: 150 tons (330,000 lbs)
- Temp. Range: -20°C up to +200°C
- Standards & Certifications: ASME B30.26 & US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade B
- Design Factor 5:1
