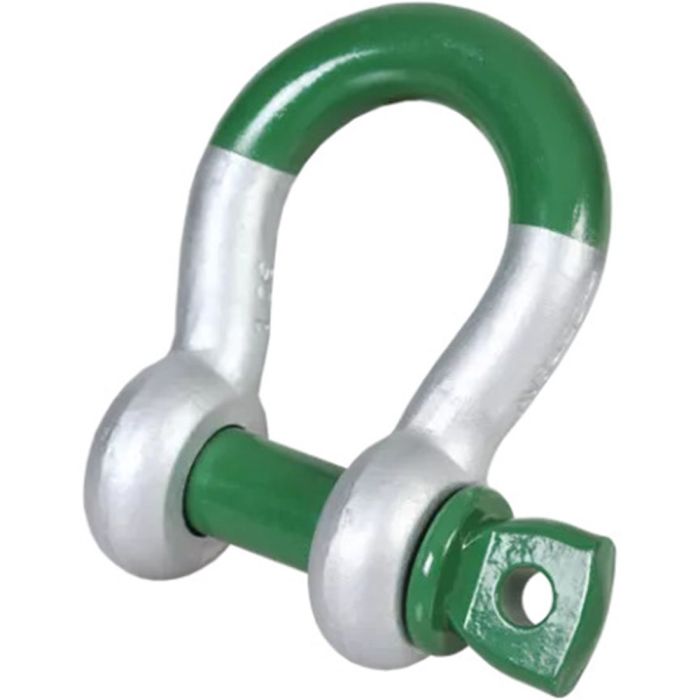

The Green Pin Super® Bow Shackle SC is a grade 8 bow shackle featuring a screw pin for quick assembly and (dis)assembly, ideal for frequent rigging activities. Its compact size and lightweight design make handling effortless, without compromising on strength. Galvanization ensures long-term durability, while the concealed screw thread in the shackle eye reduces wear and tear on wire ropes and other components.
Specifications:
- Size (Shackle Body Thickness): 7/8″
- Throat Opening (Width Between Ears): 1.42″
- Throat Depth: 3.27″
- Pin Size: 0.98″
- Pin Type: Screw Pin
- Finish: Hot Dipped Galvanized
- Material: Grade 8 Alloy Steel
- Working Load Limit: 9.50 tons (20,900 lbs)
- Temp. Range: -40°C up to +200°C
- Standards & Certifications: ASME B30.26 & US Fed. Spec. RR-C-271, Type IVA, Class 2, Grade B
- Design Factor 5:1
