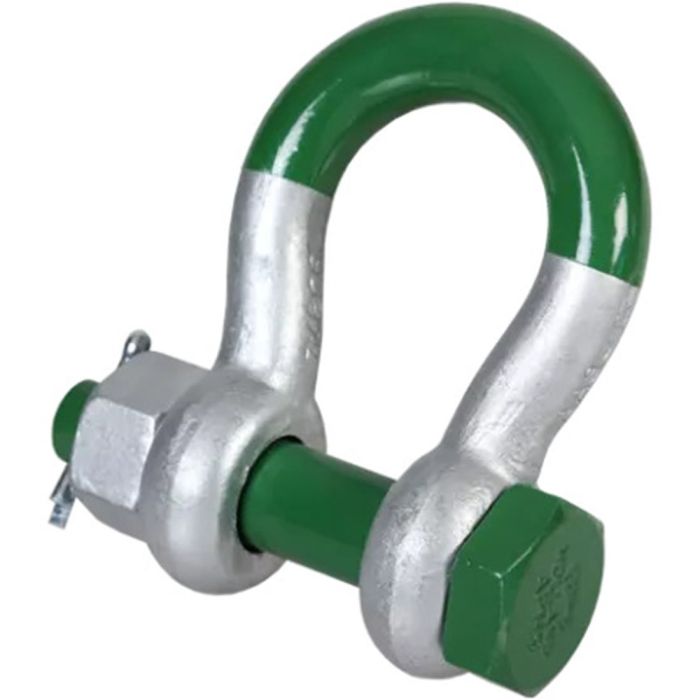

Green Pin G-5263 Alloy Bolt Type Super Bow Shackle 1-3/8″ – Hot Dip Galvanized

The Green Pin Super® Bow Shackle BN is a grade 8 bow shackle equipped with a safety bolt for added security. Despite its smaller size and weight, it maintains an equal working load limit compared to non-Super products, ensuring ease of handling. With a double safety mechanism (split pin and safety bolt), it prevents accidental unscrewing of the pin. Galvanization ensures long-term durability, while the concealed screw thread in the shackle eye minimizes wear and tear on wire ropes and other components.

Specifications:

• Size (Shackle Body Thickness): 1-3/8″
• Throat Opening (Width Between Ears): 2.24″
• Throat Depth: 5.24″
• Pin Size: 1.50″
• Pin Type: Bolt, Nut, & Cotter
• Finish: Hot Dipped Galvanized
• Material: Grade 8 Alloy Steel
• Working Load Limit: 21.00 tons (46,200 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: ASME B30.26 & US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade B
• Design Factor 5:1
