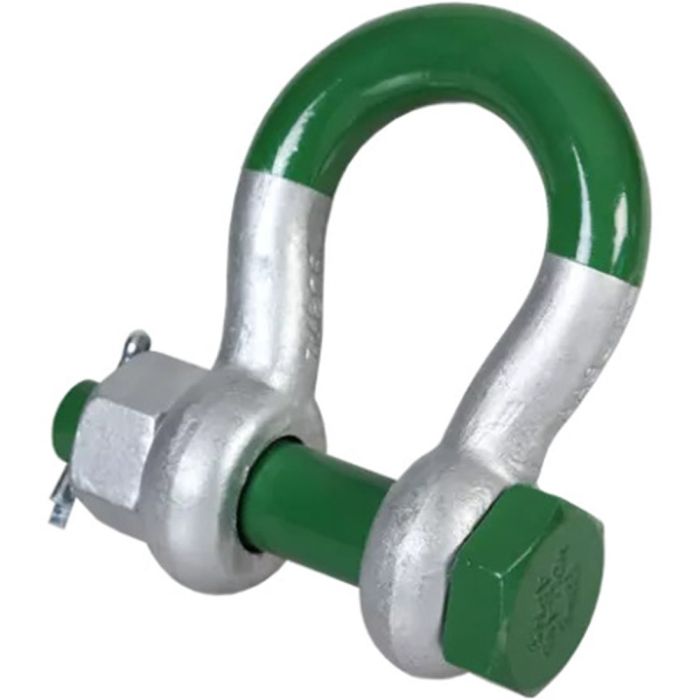

The Green Pin Super® Bow Shackle BN is a grade 8 bow shackle equipped with a safety bolt for added security. Despite its smaller size and weight, it maintains an equal working load limit compared to non-Super products, ensuring ease of handling. With a double safety mechanism (split pin and safety bolt), it prevents accidental unscrewing of the pin. Galvanization ensures long-term durability, while the concealed screw thread in the shackle eye minimizes wear and tear on wire ropes and other components.
Specifications:
- Size (Shackle Body Thickness): 2″
- Throat Opening (Width Between Ears): 3.27″
- Throat Depth: 7.76″
- Pin Size: 2.24″
- Pin Type: Bolt, Nut, & Cotter
- Finish: Hot Dipped Galvanized
- Material: Grade 8 Alloy Steel
- Working Load Limit: 55.00 tons (121,000 lbs)
- Temp. Range: -40°C up to +200°C
- Standards & Certifications: ASME B30.26 & US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade B
- Design Factor 5:1
