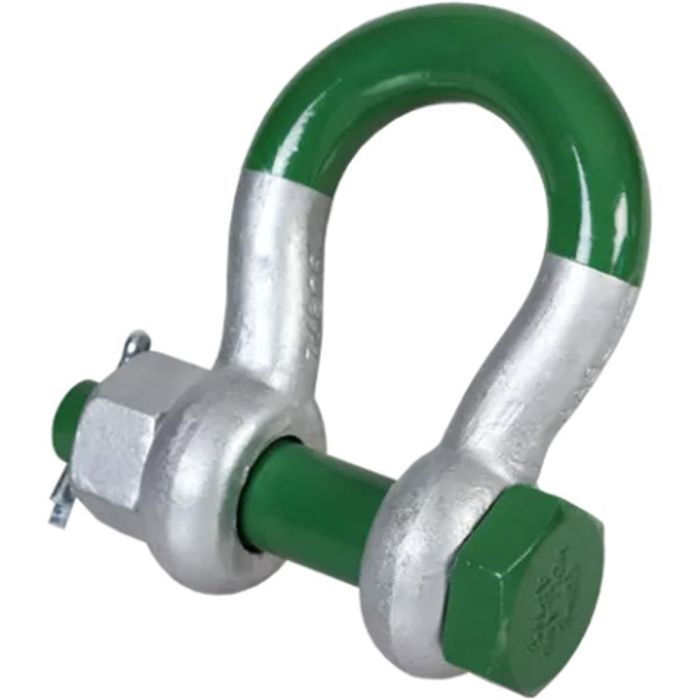

Green Pin G-5263 Alloy Bolt Type Super Bow Shackle with LROS 3-3/4″ – Painted

The Green Pin Super® Bow Shackle BN is a grade 8 bow shackle with a safety bolt. Its smaller size and weight make handling easier, while maintaining an equal working load limit compared to non-Super products. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized as the chamber in the shackle eye hides the screw thread.

✻ Green Pin Super® Bow Shackle BN with WLL 150 tons and 175 tons have a round headed bolt. ✻

Specifications:

• Size (Shackle Body Thickness): 3-3/4″
• Throat Opening (Width Between Ears): 5.79″
• Throat Depth: 15.75″
• Pin Size: 3.74″
• Pin Type: Round Headed Bolt, Nut, & Split Pin
• Finish: Painted
• Material: Alloy steel, Grade 8, quenched and tempered
• Working Load Limit: 150 tons (330,000 lbs)
• Temp. Range: -20°C up to +200°C
• Standards & Certifications: ASME B30.26 & US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade B
• Design Factor 5:1
