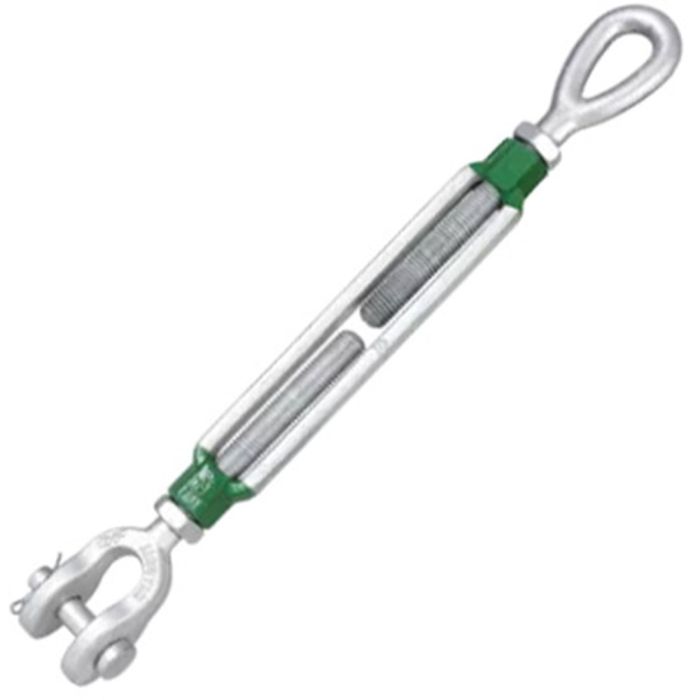

Green Pin G-6315 Turnbuckle Eye & Jaw 1-1/2″ x 24″ – Hot Dip Galvanized

The Green Pin® EJ Turnbuckle is a turnbuckle with eye-jaw end-fittings, generally to ASTM F1145-92. The jaw is fitted with a safety bolt for sizes with a diameter thread up to 5/8″ and fitted with a cotter pin for sizes with a diameter thread 3/4″ and up. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization ensures long-term durability, making it suitable for challenging environments.

Specifications:

• Thread Diameter: 1-1/2″
• Take-up: 24″
• End Fittings: Eye & Jaw (Cotter Pin)
• Overall Length (Closed): 44.09″
• Overall Length (Open): 66.57″
• Body Type: Open Body Design
• Finish: Hot Dipped Galvanized
• Material: Drop forged high tensile steel SAE 1035 or 1045
• Working Load Limit (WLL): 9.71 tons (21,362 lbs)
• Design Factor 5:1
• Temp. Range: -20°C up to +200°C
• Standards & Certifications: ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
• Imported
