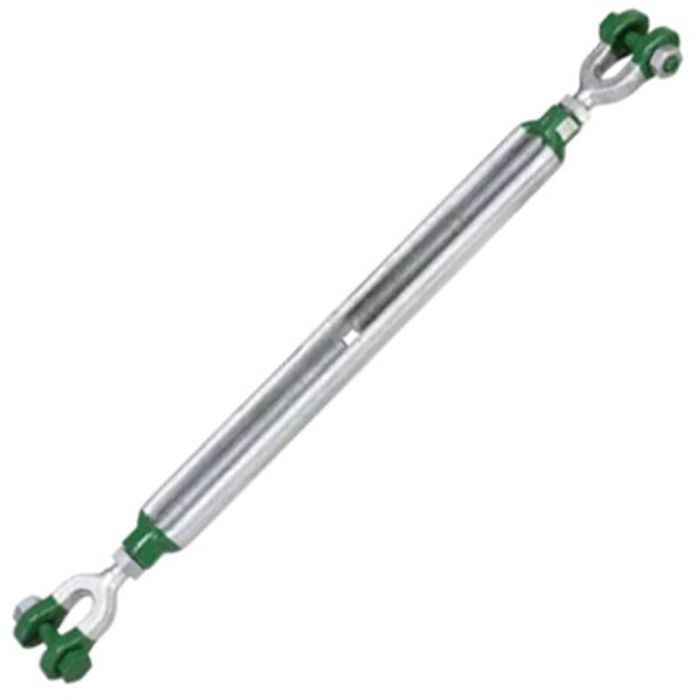

Green Pin G-6333 Polar Turnbuckle Jaw & Jaw 1″ x 18″ – Hot Dip Galvanized

The Green Pin Polar® JJ Turnbuckle BN is a grade 8 turnbuckle with jaw-jaw end-fittings and a safety bolt, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. The turnbuckle also offers a double safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin.

Specifications:

• Thread Diameter: 1″
• Take-up: 18″
• End Fittings: Jaw & Jaw (Bolt & Cotter Pin)
• Overall Length (Closed): 32.87″
• Overall Length (Open): 49.33″
• Body Type: Open Body Design
• Finish: Hot Dipped Galvanized
• Material: Drop Forged Alloy Steel, Grade 8
• Working Load Limit (WLL): 4.54 tons (9988 lbs)
• Design Factor 5:1
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
• Imported
