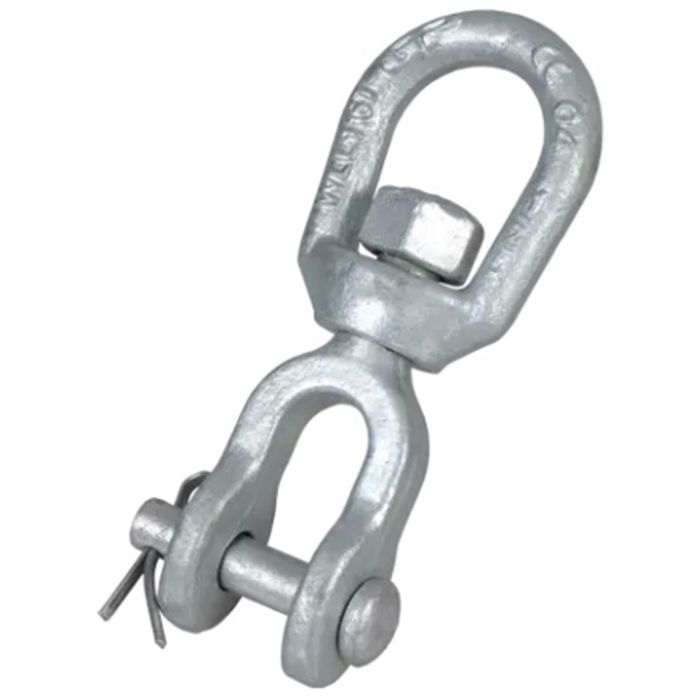

The Green Pin® JE Swivel CP is a swivel with jaw-eye end-fittings and a split pin. The swivel is made from high tensile steel and can be used under water. Galvanization of the Green Pin® JE Swivel CP ensures its long-term durability.
- Size: 1/4″ (6mm)
- Working Load Limit (WLL): 0.4 tons (880 lbs)
- Pin Diameter: 1/4″
- Jaw Inside Width: 15/32″
- Jaw Inside Length: 7/8″
- Overall Length: 3.46″
- Material: High Tensile Steel (quenched and tempered)
- Finish: Hot Dipped Galvanized
- Meets performance requirements of Federal Specifications RR-C-271, Type VII, Class 3
- Design Factor 5:1
- Imported
