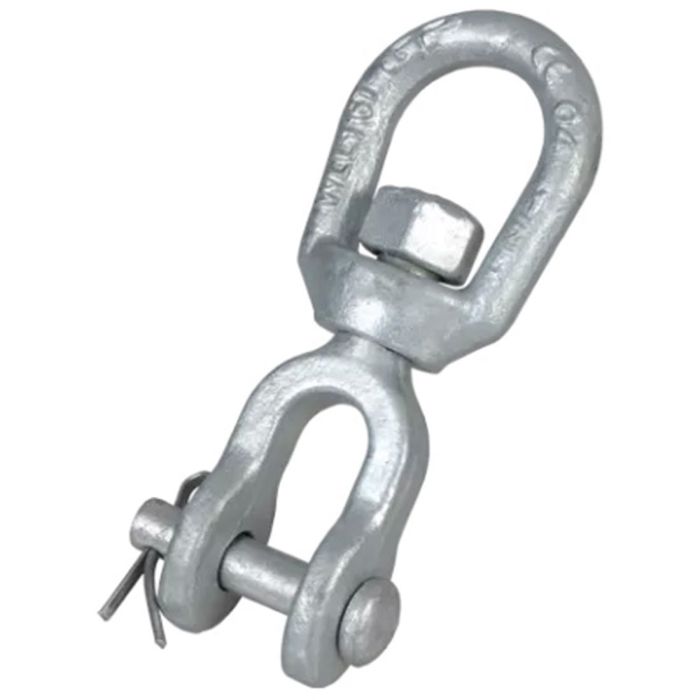

Green Pin G-7723 Jaw & Eye Swivel 1″ – Hot Dip Galvanized

The Green Pin® JE Swivel CP is a swivel with jaw-eye end-fittings and a split pin. The swivel is made from high tensile steel and can be used under water. Galvanization of the Green Pin® JE Swivel CP ensures its long-term durability.

• Size: 1″ (25mm)
• Working Load Limit (WLL): 5.7 tons (12,540 lbs)
• Pin Diameter: 1-5/32″
• Jaw Inside Width: 1-27/32″
• Jaw Inside Length: 2-27/32″
• Overall Length: 11.69″
• Material: High Tensile Steel (quenched and tempered)
• Finish: Hot Dipped Galvanized
• Meets performance requirements of Federal Specifications RR-C-271, Type VII, Class 3
• Design Factor 5:1
• Imported
