Green Pin G-7723 Jaw & Eye Swivel 13/32″ – Hot Dip Galvanized

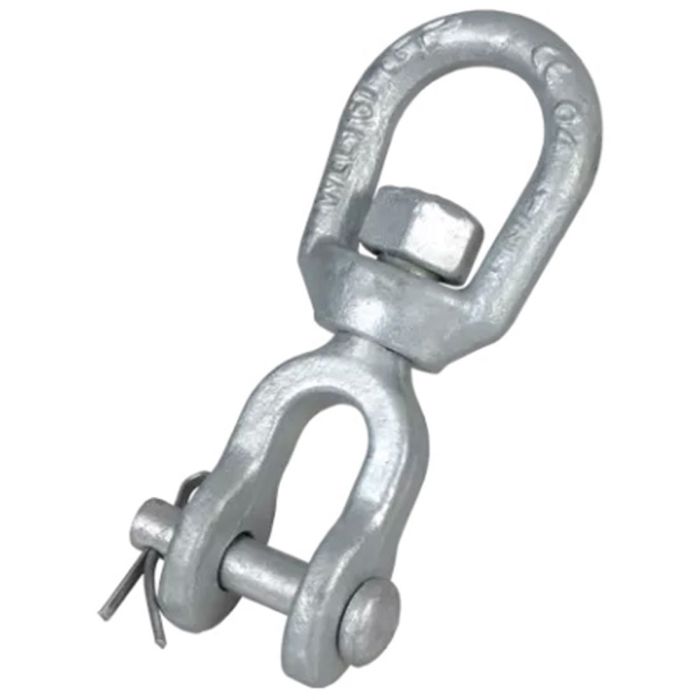

The Green Pin® JE Swivel CP is a swivel with jaw-eye end-fittings and a split pin. The swivel is made from high tensile steel and can be used under water. Galvanization of the Green Pin® JE Swivel CP ensures its long-term durability.

• Size: 13/32″ (10mm)
• Working Load Limit (WLL): 1.12 tons (2464 lbs)
• Pin Diameter: 13/32″
• Jaw Inside Width: 5/8″
• Jaw Inside Length: 1-1/16″
• Overall Length: 4.80″
• Material: High Tensile Steel (quenched and tempered)
• Finish: Hot Dipped Galvanized
• Meets performance requirements of Federal Specifications RR-C-271, Type VII, Class 3
• Design Factor 5:1
• Imported
