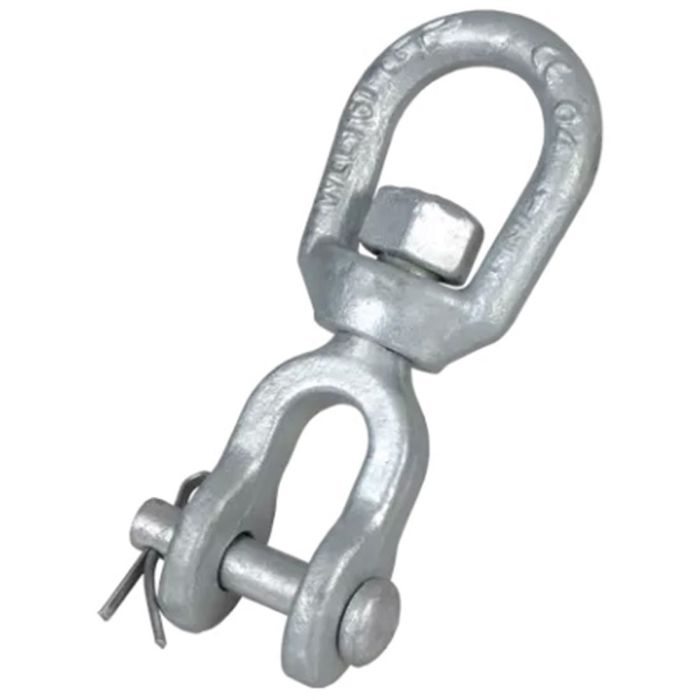

The Green Pin® JE Swivel CP is a swivel with jaw-eye end-fittings and a split pin. The swivel is made from high tensile steel and can be used under water. Galvanization of the Green Pin® JE Swivel CP ensures its long-term durability.
- Size: 5/16″ (8mm)
- Working Load Limit (WLL): 0.6 tons (1320 lbs)
- Pin Diameter: 5/16″
- Jaw Inside Width: 1/2″
- Jaw Inside Length: 29/32″
- Overall Length: 3.90″
- Material: High Tensile Steel (quenched and tempered)
- Finish: Hot Dipped Galvanized
- Meets performance requirements of Federal Specifications RR-C-271, Type VII, Class 3
- Design Factor 5:1
- Imported
