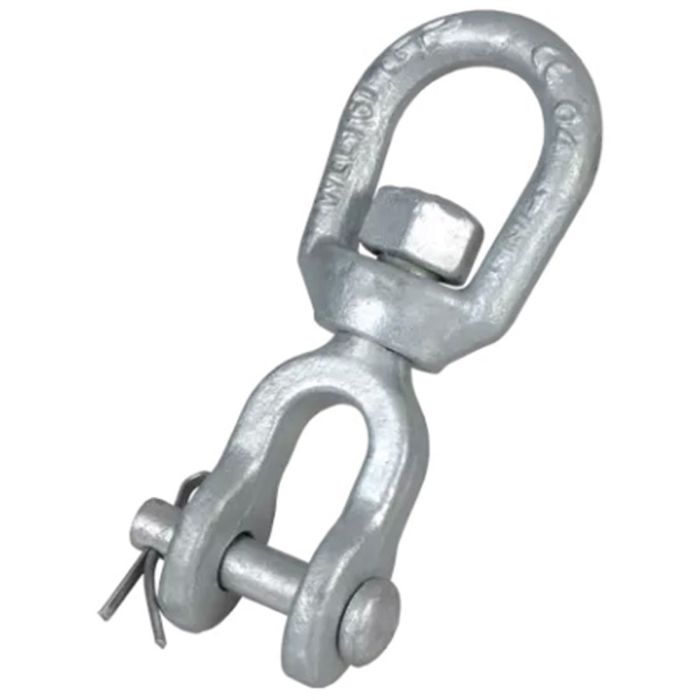

Green Pin G-7723 Jaw & Eye Swivel 5/8″ – Hot Dip Galvanized

The Green Pin® JE Swivel CP is a swivel with jaw-eye end-fittings and a split pin. The swivel is made from high tensile steel and can be used under water. Galvanization of the Green Pin® JE Swivel CP ensures its long-term durability.

• Size: 5/8″ (16mm)
• Working Load Limit (WLL): 2.4 tons (5280 lbs)
• Pin Diameter: 5/8″
• Jaw Inside Width: 1-1/32″
• Jaw Inside Length: 1-1/2″
• Overall Length: 7.24″
• Material: High Tensile Steel (quenched and tempered)
• Finish: Hot Dipped Galvanized
• Meets performance requirements of Federal Specifications RR-C-271, Type VII, Class 3
• Design Factor 5:1
• Imported
