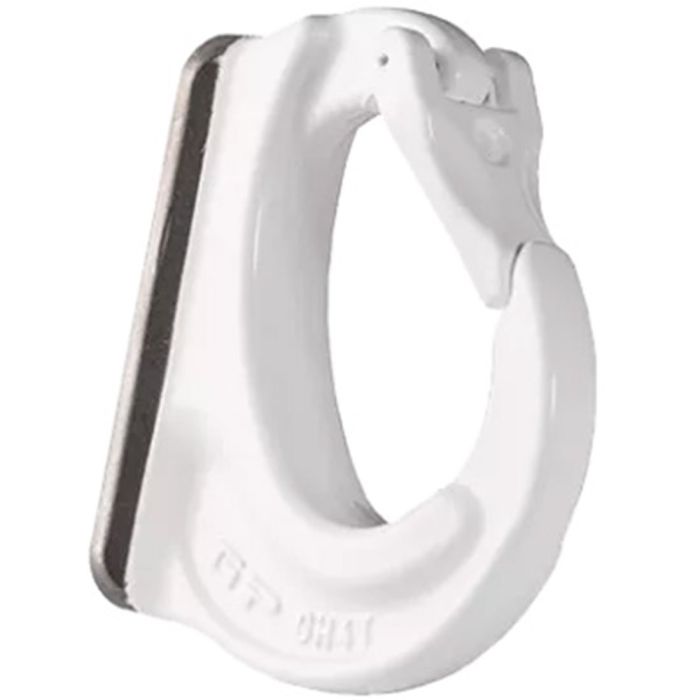

Green Pin GH Grade 80 Excavator Hook 1 Ton

The Green Pin® Excavator Hook is a grade 8 excavator hook. These hooks are welded directly to the booms of bucket or crane loaders. Lifting with the teeth of an excavator is not allowed. These hooks can also be welded on a beam to create a lifting beam. The large surface with chamfer makes the welding easy and safe. Latches are fitted as standard, to prevent accidental unhooking.

✻ Welding must be done in accordance with DIN 5817 resp. 15429, by a qualified welder according to EN 287-1 ✻

• Working Load Limit (WLL): 1 tons (2200 lbs)
• Overall Width: 2-27/32″
• Overall Length: 3.07″
• Hook Opening Width: 31/32″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Temp. Range: -40°C up to +200°C
• Design Factor 4:1
• Imported
