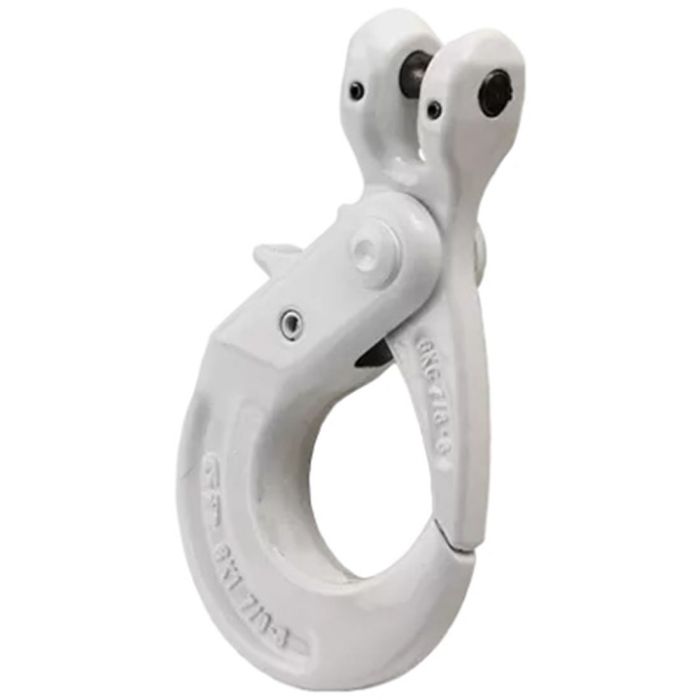

The Green Pin® Self-Locking Hook CL is a grade 8 clevis self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The clevis design enables a direct connection to grade 8 chain.
- Fits Chain Size: 3/4″ (18mm-20mm)
- Working Load Limit (WLL): 12.8 tons (28,160 lbs)
- Hook Opening: 2-15/16″
- Pin Diameter: 15/16″
- Clevis Inside Width: 7/8″
- Overall Length: 12.44″
- Material: Grade 80 Alloy Steel (quenched and tempered)
- Finish: Painted White
- Design Factor 4:1
- Made in France
