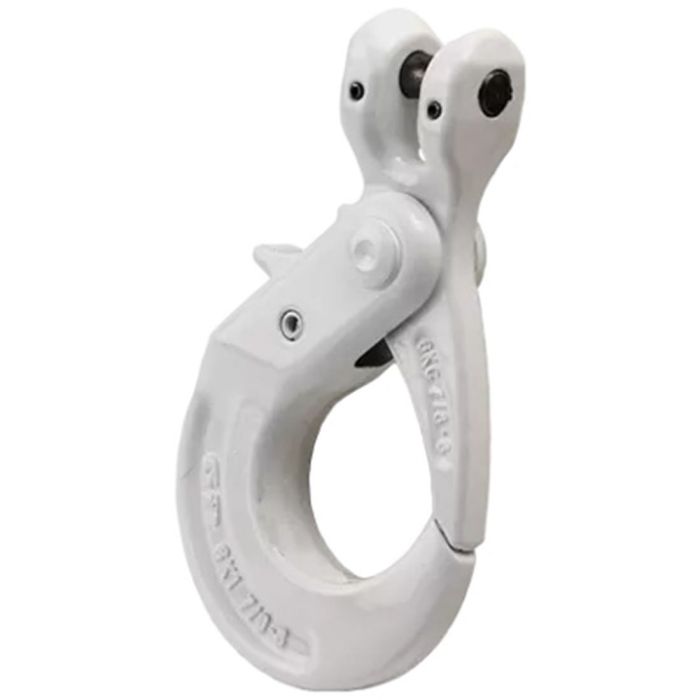

Green Pin GKC Grade 80 Clevis Self-Locking Hook 5/8″ (WLL 18,040 lbs)

The Green Pin® Self-Locking Hook CL is a grade 8 clevis self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The clevis design enables a direct connection to grade 8 chain.

• Fits Chain Size: 5/8″ (16mm)
• Working Load Limit (WLL): 8.2 tons (18,040 lbs)
• Hook Opening: 2-15/32″
• Pin Diameter: 25/32″
• Clevis Inside Width: 23/32″
• Overall Length: 9.96″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
