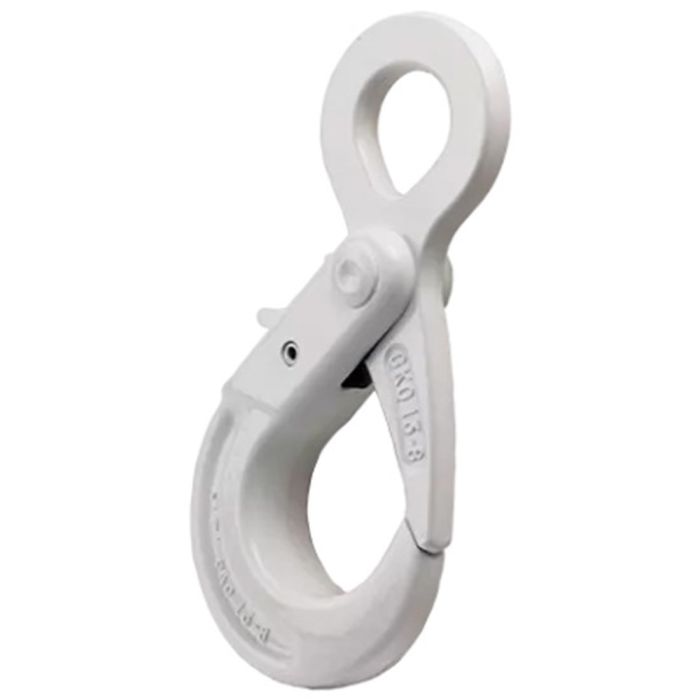

Green Pin GKO Grade 80 Eye Self-Locking Hook 7/8″ (WLL 34,100 lbs)

The Green Pin® Self-Locking Hook E is a grade 8 eye self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The eye of the hook can be connected to grade 8 chain with a connecting link, to a webbing with a web sling connector or to a wire rope with a thimble. The flat on the eye enables the assembly with an omega link or on a thimble.

• Fits Chain Size: 7/8″ (22mm)
• Working Load Limit (WLL): 15.5 tons (34,100 lbs)
• Hook Opening: 3-17/32″
• Eye Inside Diameter: 2-27/32″
• Overall Length: 14.92″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
