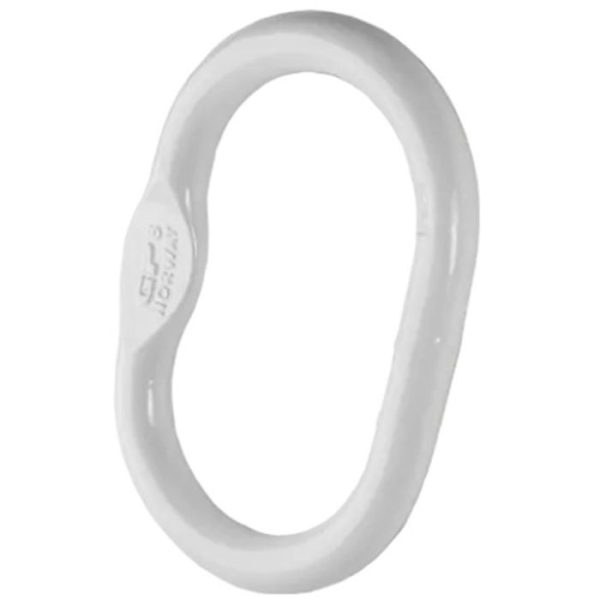

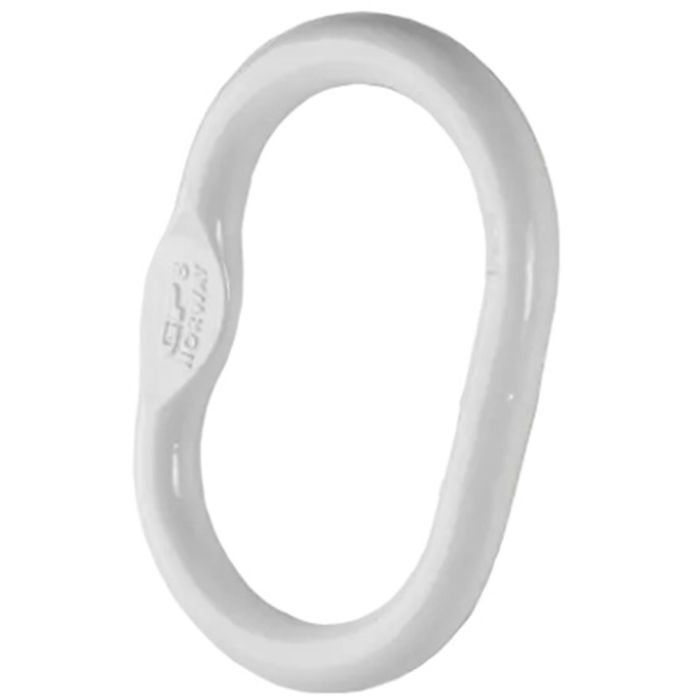

The Green Pin® Master Link EN1677-4 is a single grade 8 master link according to European standard for components for sling EN 1677-4. This welded master single link is designed for a 1 or 2 leg sling. The flat on the eye enables the assembly with an omega link or on a thimble.
- Size (link diameter): 1-3/8″
- Working Load Limit (WLL): 20 tons (44,000 lbs)
- Inside Length: 10.63″
- Inside Width: 5.71″
- Material: Grade 80 Alloy Steel
- Finish: Painted White
- Temp. Range: -40°C up to +200°C
- Standard: EN 1677-4
- Design Factor 4:1
- Imported
