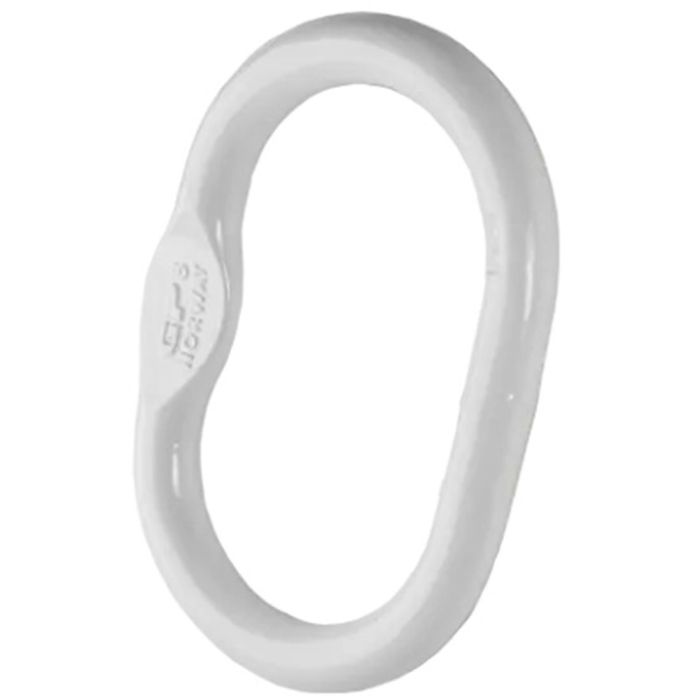

The Green Pin® Master Link EN1677-4 is a single grade 8 master link according to European standard for components for sling EN 1677-4. This welded master single link is designed for a 1 or 2 leg sling. The flat on the eye enables the assembly with an omega link or on a thimble.
- Size (link diameter): 1″
- Working Load Limit (WLL): 10.6 tons (23,320 lbs)
- Inside Length: 7.48″
- Inside Width: 4.06″
- Material: Grade 80 Alloy Steel
- Finish: Painted White
- Temp. Range: -40°C up to +200°C
- Standard: EN 1677-4
- Design Factor 4:1
- Imported
