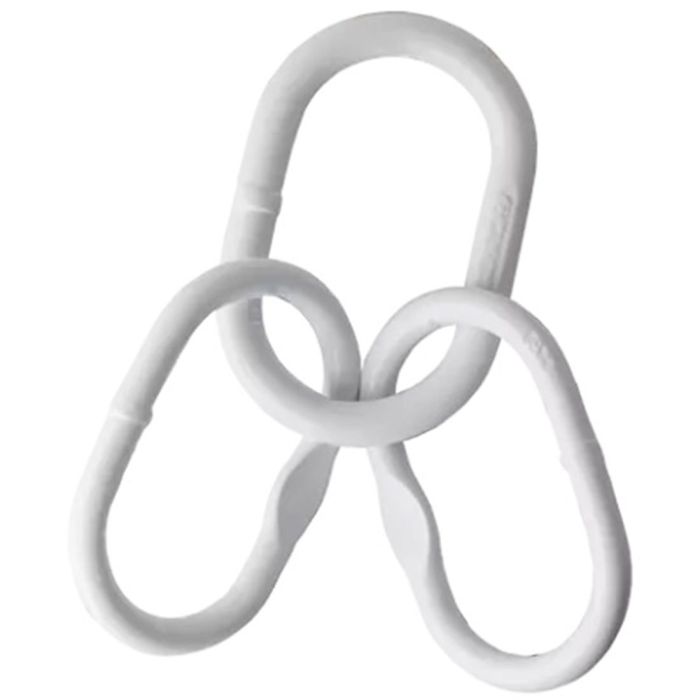

Green Pin MTS Grade 80 Welded Master Link Assembly 1″ (WLL 18,700 lbs)

The Green Pin® Master Link Assembly EN1677-4 is a grade 8 master link assembly according to European standard for components for sling EN 1677-4. This welded master link assembly is designed for 3 or 4 leg sling. The flat on the eye enables the assembly with an omega link or on a thimble.

• Size (main link thickness): 1″
• Inside Width (main link): 7.48″
• Inside Length (main link): 4.06″
• Working Load Limit (WLL): 8.5 tons (18,700 lbs)
• Material: Grade 80 Alloy Steel
• Finish: Painted White
• Temp. Range: -40°C up to +200°C
• Standard: EN 1677-4
• Design Factor 4:1
• Imported
