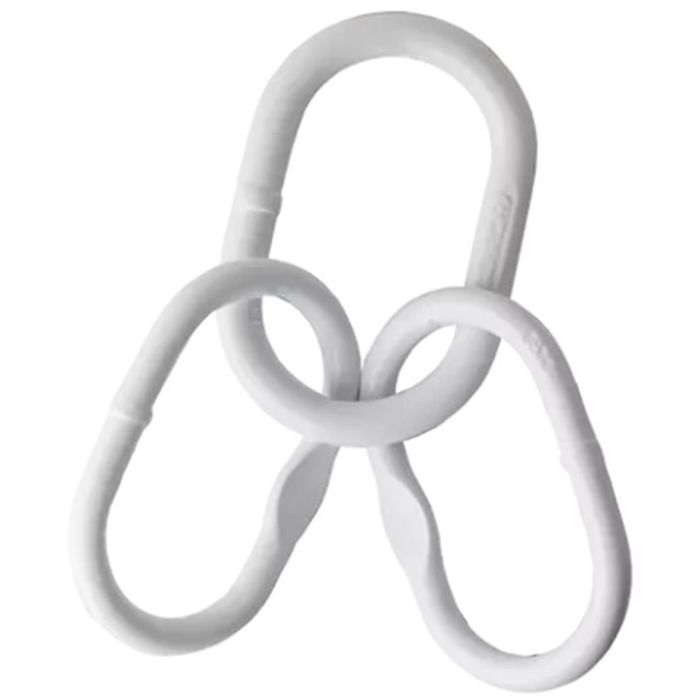

Green Pin MTS Grade 80 Welded Master Link Assembly 2-3/4″ (WLL 176,000 lbs)

The Green Pin® Master Link Assembly EN1677-4 is a grade 8 master link assembly according to European standard for components for sling EN 1677-4. This welded master link assembly is designed for 3 or 4 leg sling.

✻ WITHOUT FLAT ON THE EYE PART ✻

• Size (main link thickness): 2-3/4″
• Inside Width (main link): 19.69″
• Inside Length (main link): 9.84″
• Working Load Limit (WLL): 80 tons (176,000 lbs)
• Material: Grade 80 Alloy Steel
• Finish: Painted White
• Temp. Range: -40°C up to +200°C
• Standard: EN 1677-4
• Design Factor 4:1
• Imported
