Green Pin P-5361F Tapered Pin ROV Shackle with Fishtail-Handle 1-1/2″ – Painted

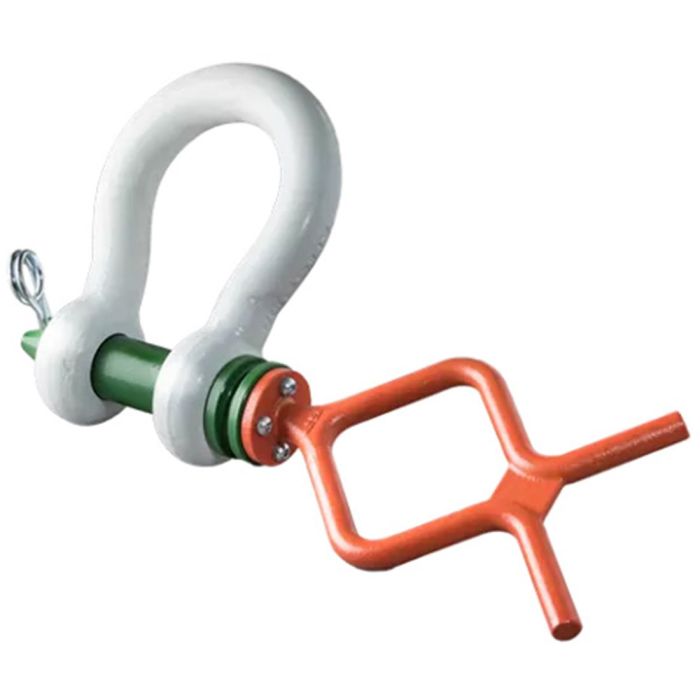

The Green Pin® Tapered Pin ROV Shackle F is a grade 8 shackle designed for subsea operations with a remotely operated vehicle (ROV). It features a fishtail handle and a tapered pin end for easy manipulation by an ROV arm. The handle is securely attached to the pin head with bolts and Nord-Lock® rings, and grooves in the pin head allow for attachment to the shackle body with wire rope. The tapered pin end simplifies underwater assembly, while the white shackle body and orange handle enhance visibility. Additionally, the pin’s screw thread is chambered to protect the sling from wear and tear.

Features:

• Tapered ending of the pin makes under water assembly easy
• Easy and safe manipulation of handles by ROV arm
• Pin contains groove to attach it to shackle body with wires
• Suitable for both inline- and side loading
• White coating optimizes visibility under water
• ✻ DOES NOT INCLUDE WIRES ✻

Specifications:

• Size (Shackle Body Thickness): 1-1/2″
• Throat Opening (Width Between Ears): 2.36″
• Throat Depth: 5.75″
• Pin Size: 1.65″
• Pin Type: Tapered Screw Pin
• Finish: Painted White (shackle bow), Painted Green (pin)
• Material: Grade 80 Alloy Steel, Polar Quality (quenched and tempered)
• Working Load Limit: 17.00 tons (37,400 lbs)
• Temp. Range: -60°C up to +200°C
• Design Factor 5:1
