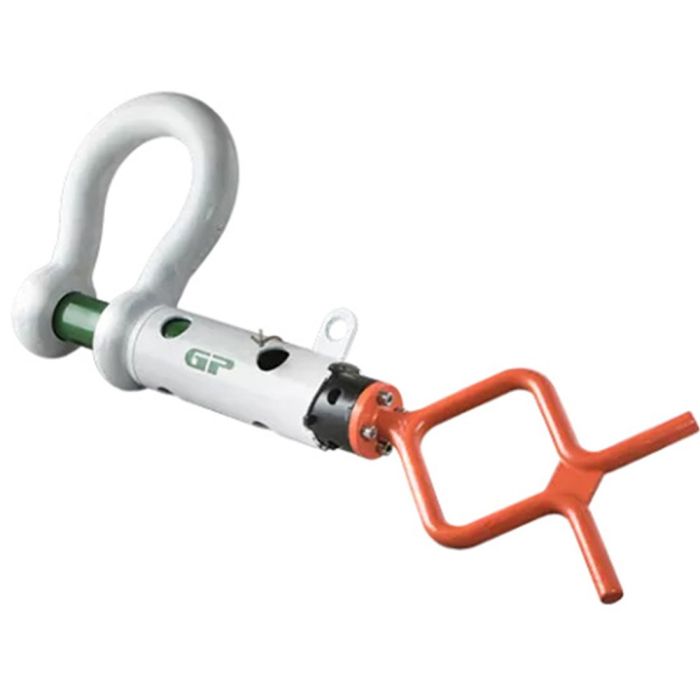

Green Pin P-5362F Guided Pin ROV Shackle with Fishtail-Handle 1-3/4″ – Painted

The Green Pin® Guided Pin ROV Shackle F is a shackle with a guiding tube with a Fishtail-Handle developed for release and retrieve operations with a remotely operated vehicle (ROV). The guiding tube ensures a 100% straight alignment of the shackle pin towards the shackle eyes which makes remote assembly and disassembly much easier. A lifting eye on the guiding tube also helps the ROV operator to balance the shackle and guarantees that the pin cannot fall out of the tube. The Green Pin® Guided Pin ROV Shackle F also improves safety through its innovative locking system which prevents the shackle pin from accidentally turning counterclockwise and coming loose.

Specifications:

• Size (Shackle Body Thickness): 1-3/4″
• Throat Opening (Width Between Ears): 2.91″
• Throat Depth: 7.01″
• Pin Size: 1.97″
• Guide Tube Diameter: 3.27″
• Pin Type: Guiding Tube with Fishtail-Handle
• Finish: Painted White (shackle bow), Painted Green (pin)
• Material: Grade 80 Alloy Steel, Polar Quality (quenched and tempered)
• Working Load Limit: 25.00 tons (55,000 lbs)
• Temp. Range: -60°C up to +200°C
• Design Factor 5:1
