Green Pin P-5363 Spring Pin ROV Shackle 2″ – Painted

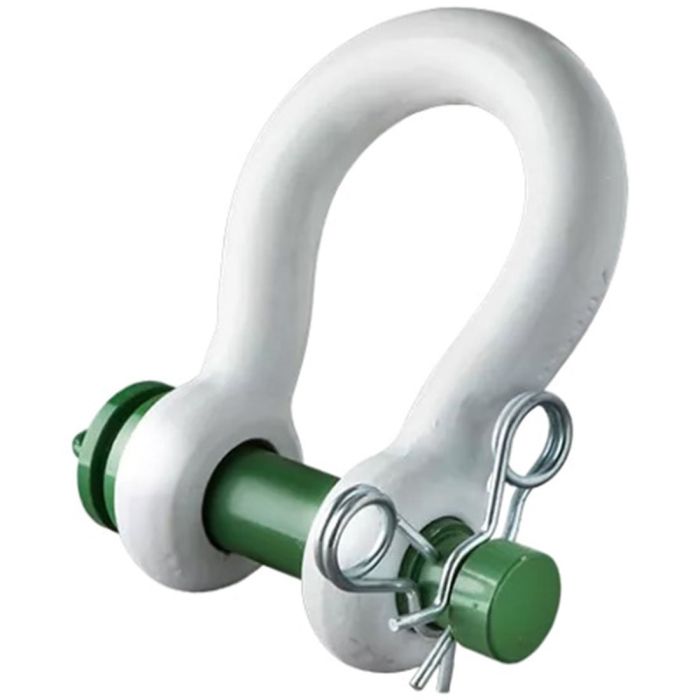

The Green Pin® Spring Pin ROV Shackle is a grade 8 shackle specially developed for (subsea) release operations with a remotely operated vehicle (ROV). The mechanism has been designed so that disassembling the shackle and releasing the load under water is easy and efficient. The shackle’s two spring pins ensure its safe use and prevent the unintentional release of the load. Furthermore, the white coating of the Green Pin® Spring Pin ROV Shackle optimizes visibility under water and ensures its long-term durability.

✻ FOR IN-LINE USE ONLY AND DOES NOT INCLUDE WIRES ✻

Specifications:

• Size (Shackle Body Thickness): 2″
• Throat Opening (Width Between Ears): 3.27″
• Throat Depth: 7.76″
• Pin Size: 2.24″
• Pin Type: Spring Pins
• Finish: Painted White (shackle bow), Painted Green (pin)
• Material: Grade 80 Alloy Steel, Polar Quality (quenched and tempered)
• Working Load Limit: 35.00 tons (77,000 lbs)
• Temp. Range: -60°C up to +200°C
• Design Factor 5:1
