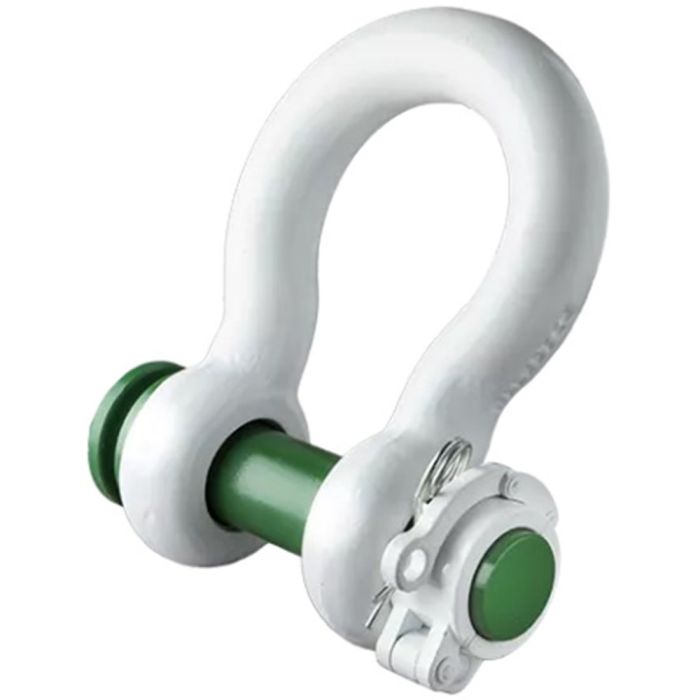

Green Pin P-5365 Locking Clamp ROV Shackle 1-1/2″ – Painted

The Green Pin® Locking Clamp ROV Shackle is perfect for release operations with a remotely operated vehicle (ROV). The grade 8 shackle has been specially developed for sub-sea applications and is easy to handle for the ROV pilot. The Green Pin® Locking Clamp ROV Shackle has a powerful locking system which ensures that the load will not be released before you want it to. The white coating of the Green Pin® Locking Clamp ROV Shackle optimizes visibility under water and ensures its long-term durability.

✻ DOES NOT INCLUDE WIRES ✻

Specifications:

• Size (Shackle Body Thickness): 1-1/2″
• Throat Opening (Width Between Ears): 2.36″
• Throat Depth: 5.75″
• Pin Size: 1.65″
• Locking Clamp Width: 1.89″
• Pin Type: Locking Clamp
• Finish: Painted White (shackle bow), Painted Green (pin)
• Material: Grade 80 Alloy Steel, Polar Quality (quenched and tempered)
• Working Load Limit: 17.00 tons (37,400 lbs)
• Temp. Range: -60°C up to +200°C
• Design Factor 6:1
