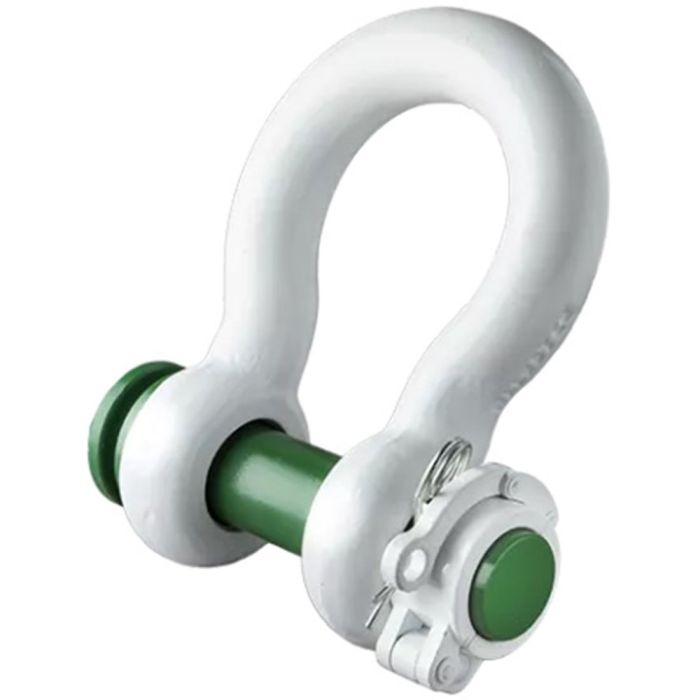

The Green Pin® Locking Clamp ROV Shackle is perfect for release operations with a remotely operated vehicle (ROV). The grade 8 shackle has been specially developed for sub-sea applications and is easy to handle for the ROV pilot. The Green Pin® Locking Clamp ROV Shackle has a powerful locking system which ensures that the load will not be released before you want it to. The white coating of the Green Pin® Locking Clamp ROV Shackle optimizes visibility under water and ensures its long-term durability.
✻ DOES NOT INCLUDE WIRES ✻
Specifications:
- Size (Shackle Body Thickness): 1-1/8″
- Throat Opening (Width Between Ears): 1.85″
- Throat Depth: 4.25″
- Pin Size: 1.26″
- Locking Clamp Width: 1.89″
- Pin Type: Locking Clamp
- Finish: Painted White (shackle bow), Painted Green (pin)
- Material: Grade 80 Alloy Steel, Polar Quality (quenched and tempered)
- Working Load Limit: 9.50 tons (20,900 lbs)
- Temp. Range: -60°C up to +200°C
- Design Factor 6:1
