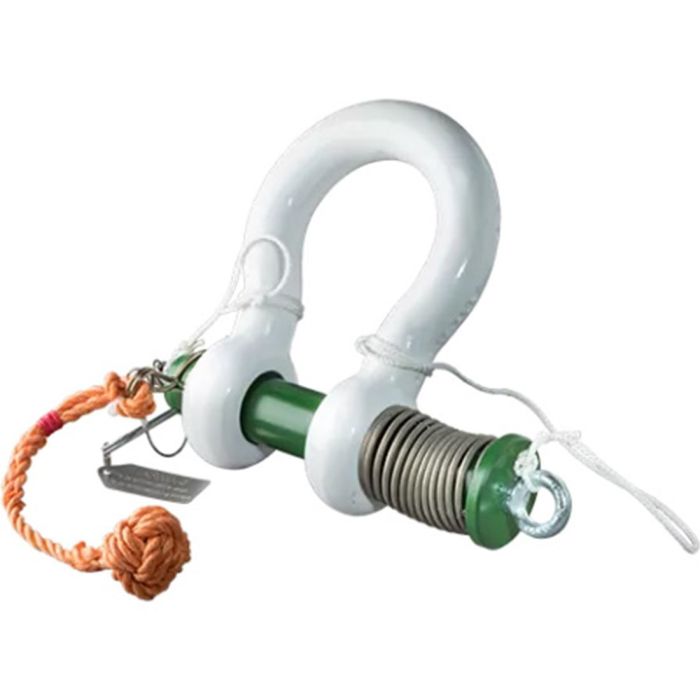

The Green Pin® Spring Release ROV Shackle is a grade 8 shackle developed specifically for (subsea) release operations with a remotely operated vehicle (ROV). The shackle has a specially designed quick release system that can be manipulated easily by a hydraulically operated ROV arm, without compromising safety. By activating the spring the shackle is disassembled quickly and safely. Assembly of the shackle can be done by hand for the smaller sizes.
✻ For in-line use only. This shackle is assembled with wire rope sling and a monkey’s fist. ✻
Specifications:
- Size (Shackle Body Thickness): 1-3/8″
- Throat Opening (Width Between Ears): 2.24″
- Throat Depth: 5.24″
- Pin Size: 1.50″
- Pin Type: Spring Pin, Safety Pin, Coiled Pins, and Firing Pin
- Finish: Painted White (shackle bow), Painted Green (pin)
- Material: Grade 80 Alloy Steel, Polar Quality (quenched and tempered)
- Working Load Limit: 13.50 tons (29,700 lbs)
- Temp. Range: -40°C up to +200°C
- Design Factor 5:1
