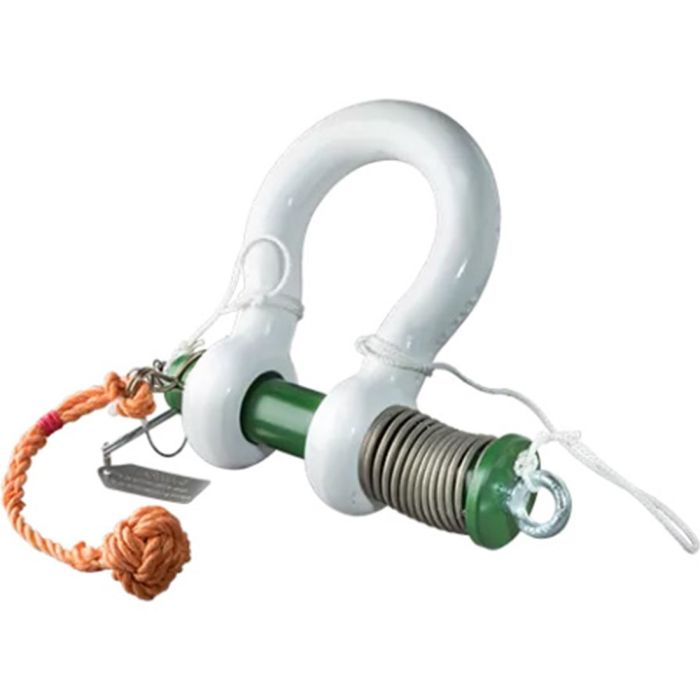

The Green Pin® Spring Release ROV Shackle is a grade 8 shackle developed specifically for (subsea) release operations with a remotely operated vehicle (ROV). The shackle has a specially designed quick release system that can be manipulated easily by a hydraulically operated ROV arm, without compromising safety. By activating the spring the shackle is disassembled quickly and safely.
✻ For in-line use only. This shackle is assembled with wire rope sling and a monkey’s fist. For WLL 55 tons a special compression tool (not included) is required to assemble the shackle. ✻
Specifications:
- Size (Shackle Body Thickness): 2-1/2″
- Throat Opening (Width Between Ears): 4.13″
- Throat Depth: 10.24″
- Pin Size: 2.76″
- Pin Type: Spring Pin, Safety Pin, Coiled Pins, and Firing Pin
- Finish: Painted White (shackle bow), Painted Green (pin)
- Material: Grade 80 Alloy Steel, Polar Quality (quenched and tempered)
- Working Load Limit: 55.00 tons (121,000 lbs)
- Temp. Range: -40°C up to +200°C
- Design Factor 5:1
