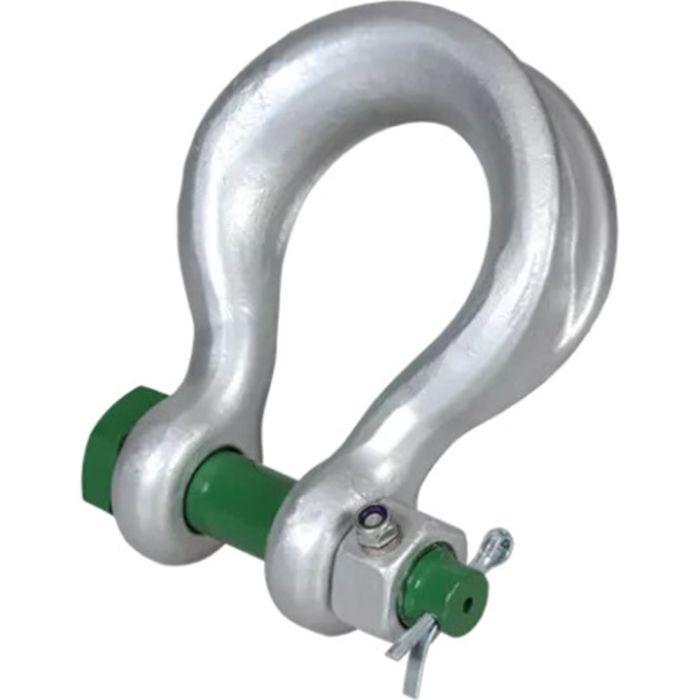

Green Pin P-6013 Alloy Fixed Nut Sling Shackle 1-3/8″ – Hot Dip Galvanized

The Green Pin® Sling Shackle FN is a heavy-duty bow shackle with a safety bolt and fixed nut, designed for high load capacity applications. Its unique crown shape enhances sling resistance to wear and tear, allowing for the use of lighter wire ropes to lift heavy loads, thus reducing wire rope costs. With triple safety features including a split pin, safety bolt, and fixed nut, it ensures top-notch performance in dynamic loads and extreme vibrations. Galvanized for long-term durability, it also comes with various certifications, making it suitable for a wide range of heavy lifting projects.

Specifications:

• Size (Shackle Body Thickness): 1-3/8″
• Throat Opening (Width Between Ears): 2.13″
• Throat Depth: 5.83″
• Pin Size: 1.38″
• Pin Type: Bolt, Fixed Nut, & Cotter
• Finish: Hot Dipped Galvanized
• Material: Grade 8 Alloy Steel
• Working Load Limit: 18.00 tons (39,600 lbs)
• Temp. Range: -40°C up to +200°C
• Design Factor 5:1
