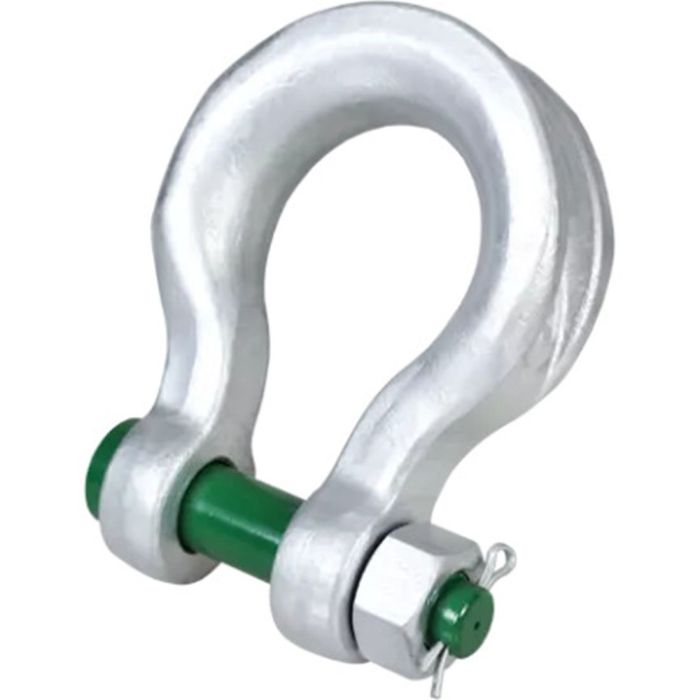

Green Pin P-6033 Alloy Bolt Type Sling Shackle 3-11/16″ – Painted

The Green Pin® Sling Shackle BN is a heavy-duty bow shackle with a safety bolt and fixed nut, designed for high-load lifting applications. Its unique shape enhances sling resistance and allows for the use of lighter wire ropes without compromising lifting capacity.

Specifications:

• Size (Shackle Body Thickness): 3-11/16″
• Throat Opening (Width Between Ears): 5.79″
• Throat Depth: 15.39″
• Pin Size: 3.74″
• Pin Type: Bolt, Nut, & Cotter
• Finish: Painted
• Material: Grade 8 Alloy Steel
• Working Load Limit: 150 tons (330,000 lbs)
• Temp. Range: -40°C up to +200°C
• Design Factor 5:1
