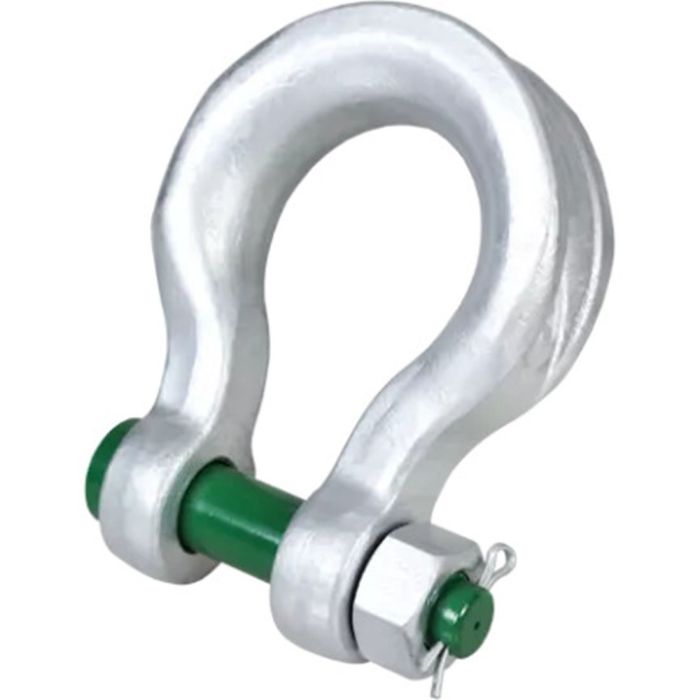

The Green Pin® Sling Shackle BN is a heavy-duty bow shackle with a safety bolt and fixed nut, designed for high-load lifting applications. Its unique shape enhances sling resistance and allows for the use of lighter wire ropes without compromising lifting capacity.
Specifications:
- Size (Shackle Body Thickness): 3-11/32″
- Throat Opening (Width Between Ears): 5.39″
- Throat Depth: 14.41″
- Pin Size: 3.15″
- Pin Type: Bolt, Nut, & Cotter
- Finish: Painted
- Material: Grade 8 Alloy Steel
- Working Load Limit: 125 tons (275,000 lbs)
- Temp. Range: -40°C up to +200°C
- Design Factor 5:1
