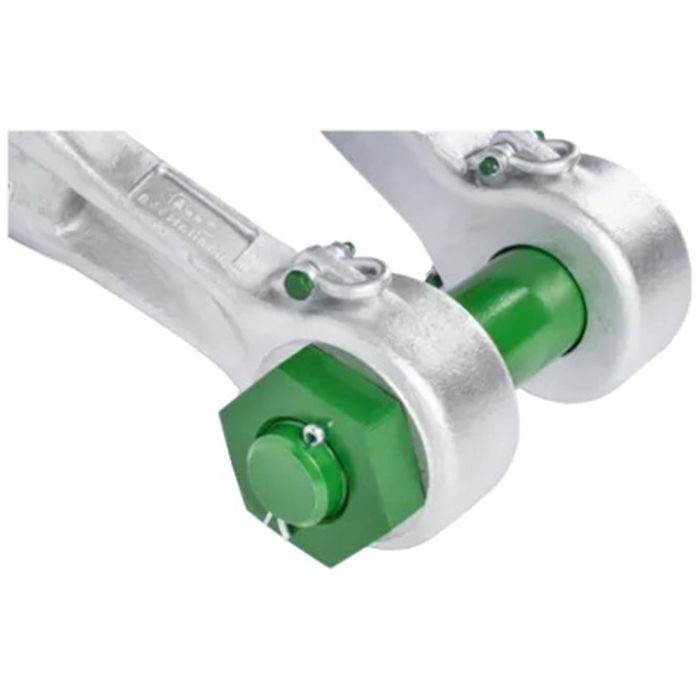

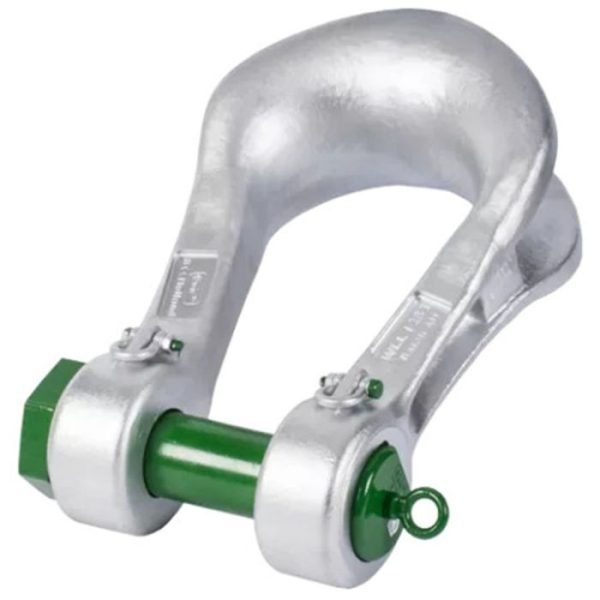

Green Pin P-6043 Alloy Bolt Type Power Sling Shackle 400 Ton – Painted

The Green Pin Power Sling® Shackle BN is the ultimate solution for heavy lifting applications, setting the standard in the lifting industry. With an impressive bending efficiency of 85% and a wider shackle crown, it offers optimal performance and durability. Reinforced stress areas ensure longevity and reliability, allowing for significant cost savings of up to 20% on synthetic and wire rope expenses. Rigorously tested for tensile strength and fatigue resistance, it exceeds industry standards with over 40,000 cycles of testing. Equipped with multiple handling points for enhanced safety and efficiency, lifting operations are simplified and secure.

Specifications:

• Throat Opening (Width Between Ears): 8.82″
• Throat Depth: 24.41″
• Pin Size: 6.30″
• Pin Type: Bolt & Cotter
• Finish: Shackle Bow Painted Silver & Pin Painted Green
• Material: Grade 8 Alloy Steel
• Working Load Limit: 400 tons (880,000 lbs)
• Temp. Range: -40°C up to +200°C
• Standards & Certifications: CE, DNVGL-ST-0378, & DNV-GL-ST-0377
• Design Factor 5:1
