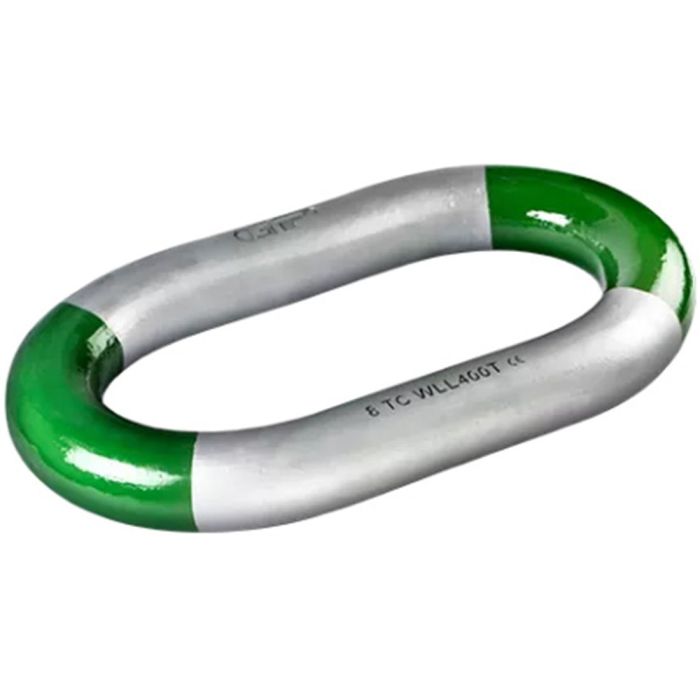

Green Pin P-6815 Grade 80 Heavy Duty Master Link 4-1/2″ (WLL 550,000 lbs)

The Green Pin® Heavy Duty Master link is a grade 8 master link for heavy duty applications. By using a unique innovative production method, the master links are fully forged as a single piece, without any welding whatsoever. As a result, the master links meet the most stringent safety- and performance requirements and will keep working reliably in even the harshest environments.

Features:

• Extremely safe: fully forged & completely weldless
• Smooth surface: less wear to slings
• 120 degrees lifting angle indicator
• Conforms to offshore certification requirements
• Imported

Specifications:

• Size (link diameter): 4-1/2″
• Working Load Limit (WLL): 250 tons (550,000 lbs)
• Inside Length: 23.62″
• Inside Width: 15.75″
• Material: Grade 80 Alloy Steel
• Finish: Painted Silver and Green
• Temp. Range: -40°C up to +200°C
• Design Factor 5:1
• Imported
