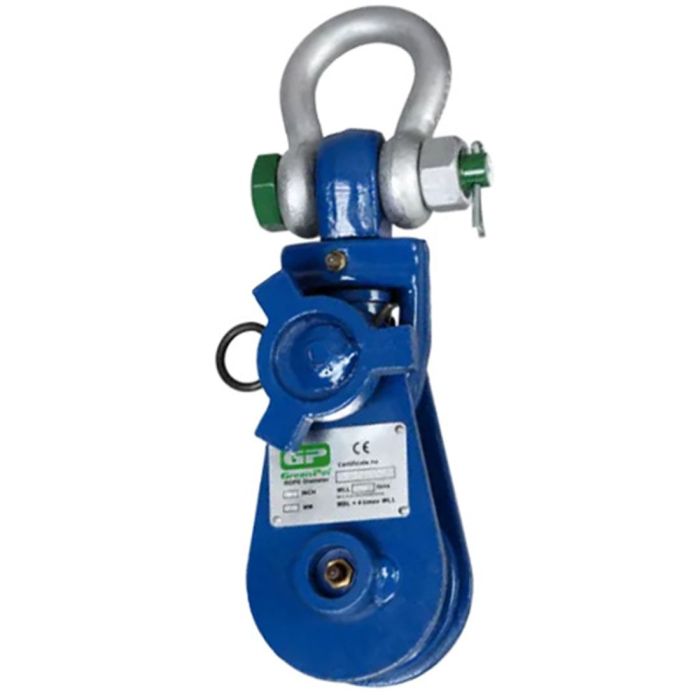

Green Pin P-6951 601S Snatch Block with Shackle 22 Ton (16″ Sheave, 1-1/8″ – 1-1/4″ Wire Rope)

The Green Pin® Snatch Block S is a snatch block type 601S with a Green Pin® Shackle. The Green Pin® Snatch Block S has a smooth, uninterrupted pull due to conical roller bearings. Its coating ensures long-term durability, even under harsh conditions.

• Sheave Diameter: 16″
• Bearing Type: Roller Bearing
• Wire Rope Size: 28mm – 32mm (1-1/8″ – 1-1/4″)
• Working Load Limit: 22 tons (48,400 lbs)
• Material: Carbon Steel
• Finish: Painted
• Design Factor 4:1
• Imported
