Green Pin Ratchet Loadbinder with Hooks 5/16″ – 3/8″

The Green Pin® Ratchet Loadbinder HK is a ratchet type loadbinder with hooks. The loadbinder is designed with an ergonomic, easy-to-use handle for simple, single-hand use. The improved hooks reduce chain wear substantially.

• Fits Chain Size: 8mm – 10mm (5/16″ – 3/8″)
• Take Up: 6-9/32″
• Minimum Breaking Load: 8.62 tons (18,964 lbs)
• Lashing Capacity: 2.45 tons (5390 lbs)

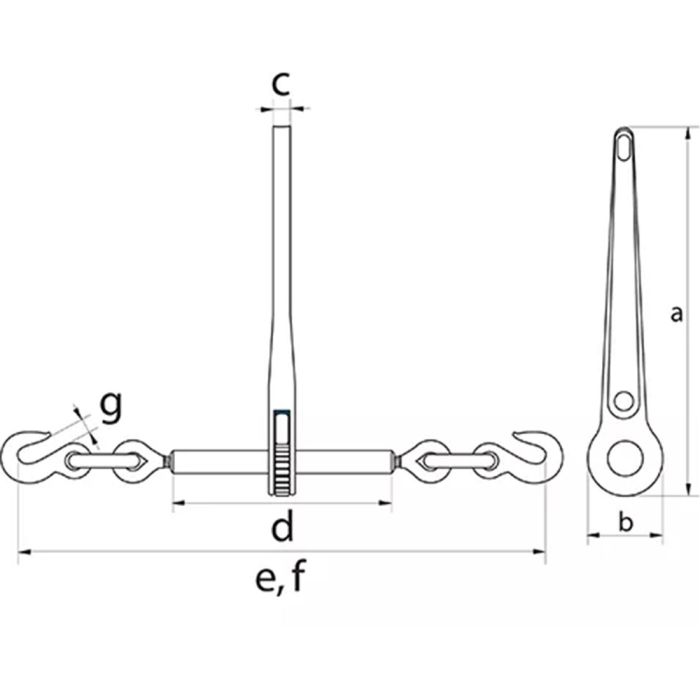

• Length Handle (a): 15-5/32″
• Diameter (b): 2-9/16″
• Thickness (c): 19/32″
• Length Barrel (d): 10-1/32″
• Length Open Position (e): 28-15/16″
• Length Closed Position (f): 22-5/8″
• Width (g): 15/32″
• Material: Drop Forged/Cast Steel
• Finish: Painted
