Green Pin Tycan® Grade 100 Ratchet Loadbinder 19/32″ x 1″

The Green Pin Tycan® Ratchet Loadbinder is a grade 10 ratchet type loadbinder for use with Green Pin Tycan® Chain. The takeup-length of the loadbinder has been designed specifically for use with Green Pin Tycan® Chain. The ratchet in this loadbinder enables the precise setting of the lashing length and tension.

• Fits Chain Size: 15mm x 25mm & 13mm x 30mm (19/32″ x 1″ & 1/2″ x 1-3/16″)
• Working Load Limit (WLL): 16.00 tons (35,200 lbs)

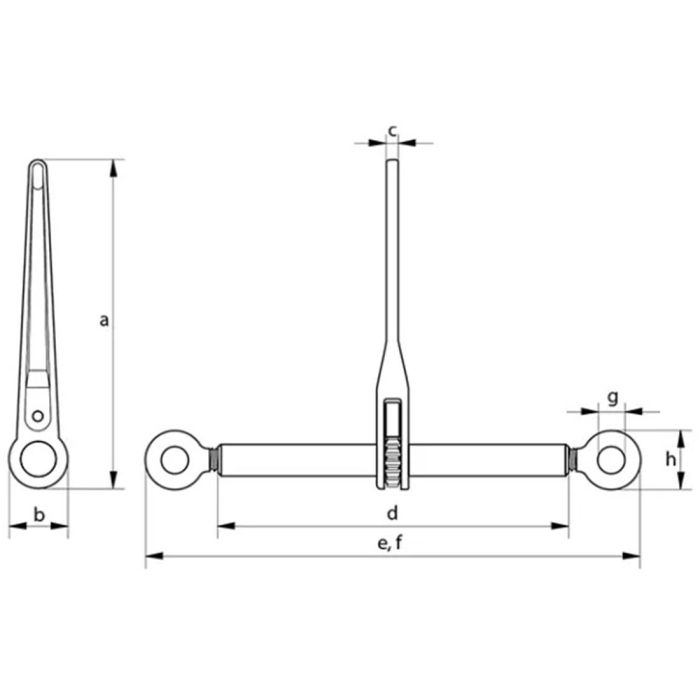

• Length Handle (a): 387mm (15-1/4″)
• Diameter (b): 65mm (2-9/16″)
• Thickness (c): 15mm (19/32″)
• Length Barrel (d): 410mm (16-5/32″)
• Length Open Position (e): 858mm (33-25/32″)
• Length Closed Position (f): 558mm (21-31/32″)
• Diameter Eye Inside (g): 30mm (1-3/16″)
• Diameter Eye Outside (h): 64mm (2-16/32″)
• Material: Drop Forged Steel
• Finish: Painted
• Meets or exceeds EN 12195-3 standards
• Design Factor 2:1
