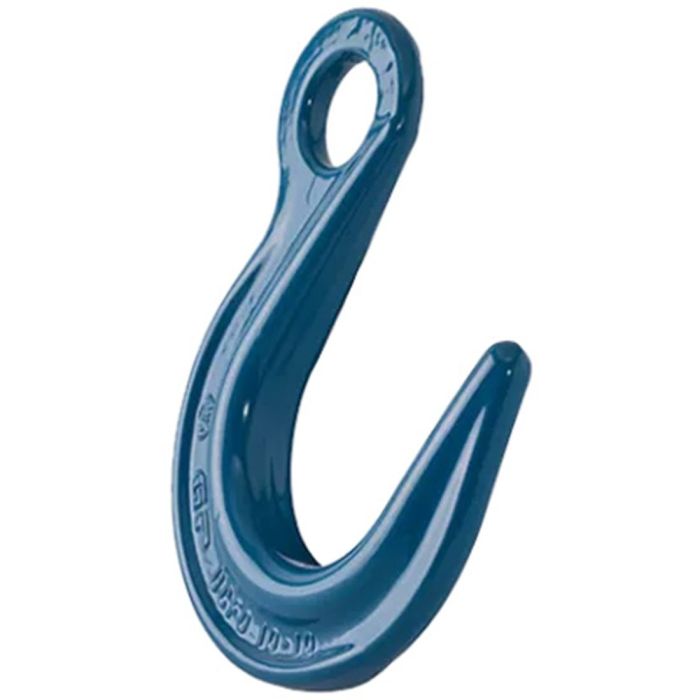

The Green Pin® Foundry Hook E is a grade 10 eye foundry hook. The throats are designed to accommodate standard trunnions, whereas the tips enable easy insertion into the holes of the melting pots. These hooks must be used for specific applications in foundries as they do not have safety latches.
- Fits Chain Diameter: 7/32″
- Working Load Limit (WLL): 1.4 tons (3080 lbs)
- Hook Opening: 1.89″
- Eye Inside Diameter: 0.75″
- Overall Length: 4.88″
- Material: Grade 100 Alloy Steel (quenched and tempered)
- Finish: Painted Blue
- Temp. Range: -40°C up to +200°C
- Design Factor 4:1
- Made in France
