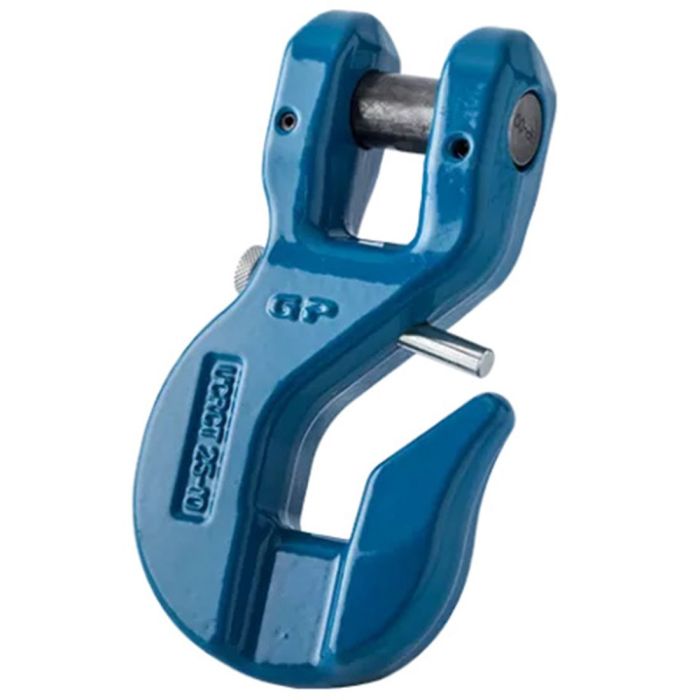

The Green Pin Tycan® Grab Hook CL GR10 is a grade 10 clevis grab hook with a locking pin for use with Green Pin Tycan® Chain.
- For Tycan Chain: 7/16″ x 25/32″
- Working Load Limit (WLL): 4 tons (8800 lbs)
- Clevis Width: 7/8″
- Pin Diameter: 5/8″
- Opening: 25/32″
- Overall Length: 5.43″
- Material: Grade 100 Alloy Steel (quenched and tempered)
- Finish: Painted Blue
- Design Factor 4:1
- Made in France
